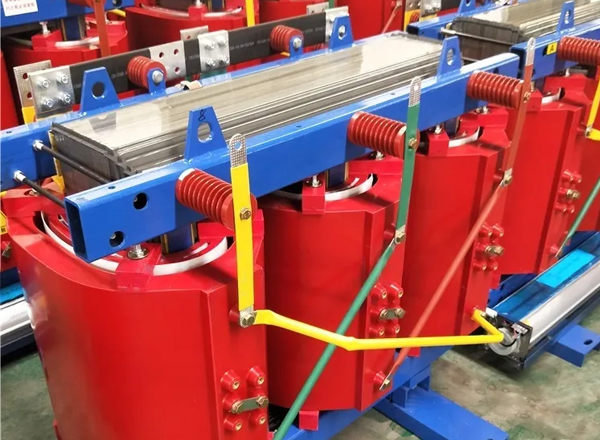

35kV dry-type power transformer is specially designed for 5000kVA to 10000kVA capacity applications in urban substations, industrial plants and infrastructure projects. Built with a sturdy IP54 enclosure, it uses an oil-free, epoxy resin cast structure that brings safe, clean and stable power supply to demanding working sites.
Suitable for 50Hz and 60Hz three-phase AC systems, this transformer comes with reliable vacuum-cast windings, AN/AF dual cooling and off-load tap changing. The IP54 protection effectively keeps out dust, rain and splashing water, allowing stable outdoor and semi-outdoor operation without extra housing or protection.
With high efficiency, low noise, strong short-circuit resistance and maintenance-free design, this transformer fully meets IEC 60076 and GB/T 10228 standards. It provides long-term dependable performance for industrial power, grid distribution and modern energy projects.
| Rated Voltage | 35kv |
| Transformer Capacity | 5000KVA（5MVA） |
| Phase System | Three-phase operation |
| Standards Compliance | Conforms to IEC 60076, ANSI, and IEEE standards |
| Cooling Mechanism | Employs passive air circulation via natural convection, effectively dissipating heat without the need for supplementary cooling systems while ensuring optimal thermal balance. |
| Core Construction | Fabricated from advanced cold-rolled silicon steel with enhanced magnetic properties, this design minimizes energy wastage and significantly boosts overall operational efficiency. |
| Insulation Class | Outfitted with Class F insulation materials, the transformer is built to operate continuously at elevated temperatures up to 155°C. |
Standard capacity: 5000kVA–10000kVA. Other capacities are available to order.
IP54 protection rating. It is dust- and splash-proof, making it suitable for outdoor use and harsh environments.
Natural/forced dual cooling. Natural cooling is used for normal loads, whilst forced air cooling is employed for peak loads.
Class F/H insulation. Service life can reach 30 years under normal operating conditions. What materials are used for the core and windings?
Core: high-quality silicon steel; Windings: 100% copper; Insulation: vacuum-cast epoxy resin.
Temperature controller, PT100 sensor, fan, tap changer, cable terminations, IP54-rated enclosure.
Yes. Voltage ratio, connection group, capacity, IP protection rating and cooling method can all be customised.
We JINMA electricity will provide professional selection advice based on capacity, voltage, load, installation environment and grid requirements.
Lower losses, IP54-rated enclosure, stronger short-circuit resistance, quieter operation and longer service life.
We are a specialist manufacturer with our own factory and production lines.
Yes, you are welcome to visit our factory.
