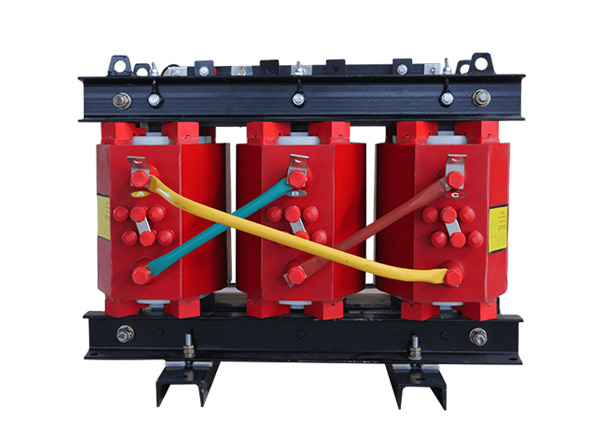

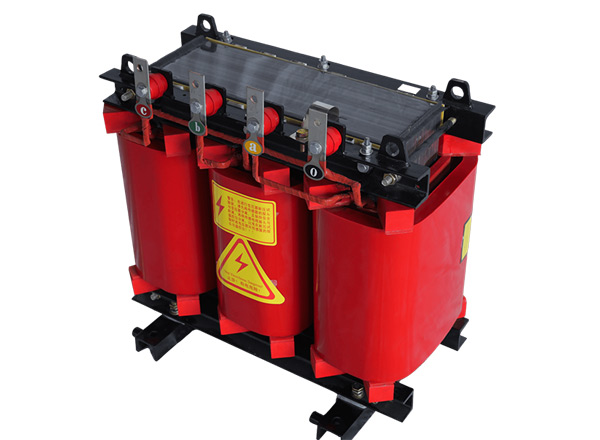

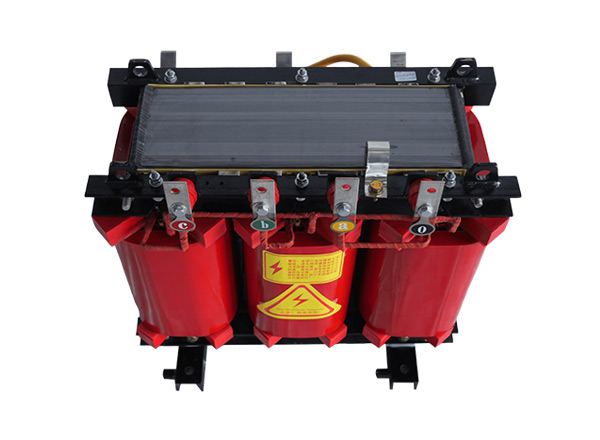

SCB18 6-11KV Dry Type Transformer

The SCB18 Dry Type Transformer is a high-efficient cast resin transformer for safe, reliable and energy-saving power distribution.
With advanced insulation and optimizes electromagnetic design, that reduces no load and load loss available in working power stable. Suitable for use in commercial, industrial and infrastructure, safety, high efficiency.

GET IN TOUCH Send Email

Share With:

Overview

parameter

feature

case

FAQ

inquiry

GET IN TOUCH

PRODUCT OVERVIEW

SCB18 dry type transformer use the epoxy resin casting technology, detailed structure with excellent insulations performance, mechanical strength, high moisture, dust and chemical resistant. In addition SCB18 dry type transformer adopts vacuum casting process for the all epoxy resin casting, have the advantage of the partial discharge.

The transformer employs low-loss silicon steel cores and optimized winding structures, which can greatly save energy and output voltage stable. It is an oil transformer, with no fire risk and pollution.

Because of its small size, low noise operation and reliability requiring very little maintenance, this system is suitable for indoor use and in areas where fire regulations are high (hospitals, airports, data centers and in tall buildings). It is also adaptable to international regulations.

PRODUCT PARAMETERS

Model No.	Rated Capacity (kVA)	HV Voltage (kV)	Tap Range	LV Voltage (kV)	No-load Loss (W)	Load Loss (W)			No-load Current (%)	Short-circuit Impedance (%)
Model No.	Rated Capacity (kVA)	HV Voltage (kV)	Tap Range	LV Voltage (kV)	No-load Loss (W)	B(100℃)	F(120℃)	H(145℃)	No-load Current (%)	Short-circuit Impedance (%)
SC(B)18-30	30	6/6.3/6.6/10/10.5/11	±2×2.5% / ±5%	0.4	105	605	640	685	2	4
SC(B)18-50	50				155	845	900	965	2
SC(B)18-80	80				210	1160	1240	1330	1.5
SC(B)18-100	100				230	1330	1415	1520	1.5
SC(B)18-125	125				270	1565	1665	1780	1.3
SC(B)18-160	160				310	1800	1915	2050	1.3
SC(B)18-200	200				360	2135	2275	2440	1.1
SC(B)18-250	250				415	2330	2485	2665	0.9
SC(B)18-315	315				510	2945	3125	3355	0.8
SC(B)18-400	400				570	3375	3590	3850	0.8
SC(B)18-500	500				670	4130	4390	4705	0.8
SC(B)18-630	630				775	4975	5290	5660	0.7
SC(B)18-630	630				750	5050	5365	5760	0.7	6.0~8.0
SC(B)18-800	800				875	5895	6715	6715	0.7
SC(B)18-1000	1000				1020	6885	7315	7885	0.7
SC(B)18-1250	1250				1205	8190	8720	9335	0.7
SC(B)18-1600	1600				1415	9945	10555	11320	0.7
SC(B)18-2000	2000				1760	12240	13005	14005	0.6
SC(B)18-2500	2500				2080	14535	15445	16605	0.6

Product Feature

Ultra-Low Energy Loss

Superior core materials and design optimizations minimize no-load and load losses and improve efficiency, decreasing operating costs over the life of the transformer.

Superior Fire Safety Performance

Oil free construction with self-extinguishing epoxy resin insulation reduces the risk of fire, suitable for installation in a crowded or higher safety requirement environment.

Excellent Environmental Adaptability

The excellent resistance to moisture, dust and pollution guarantees the stable performance even in severely polluted and humid environment, like complex chemical plants, high humidity areas, and seaside or riverland environments.

High Mechanical Strength & Reliability

The high strength cast resin structure offers highly short-circuit capability and mechanical reliability with a lifespan of many years under varying loads.

Low Noise Operation

Optimised magnetic circuit design and precise manufacturing can significantly suppress vibration and noise level, which is very suitable for noise sensitive locations.

Maintenance-Free & Eco-Friendly

No risk of oil leakage and low maintenance requirements offload the work load and take care of environmental requirements.

Reliable Quality
Better Price

Reliable Quality to Avoid Risks, Better Price to Cut Costs, Faster Delivery to Seize Opportunities!
