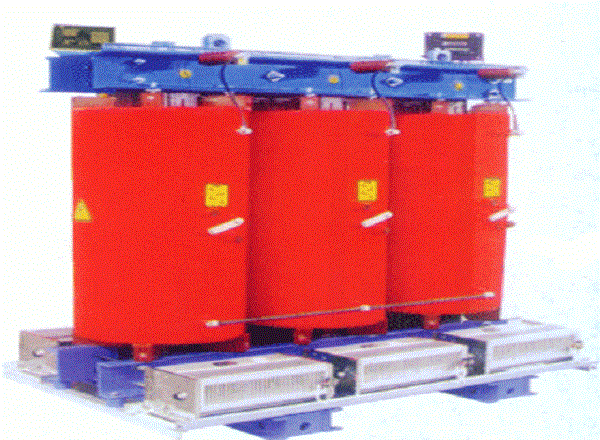

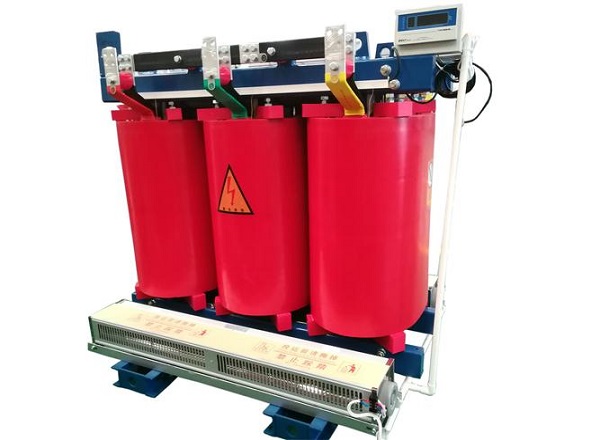

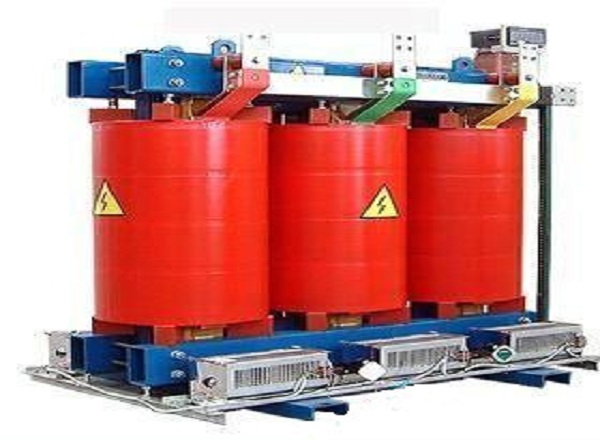

SC (B) 13 epoxy resin casting dry-type transformer is SC (B) 13 series 10kV epoxy resin cast dry-type transformer specially developed for indoor power distribution system by Golden Horse Electrical Appliances. It adopts a new generation of highly permeable silicon steel sheet and optimized winding structure, the core function of which is to realize safe and efficient conversion and distribution of electric energy, oil-free and pollution-free, fire-retardant, and it is suitable for indoor power distribution scenarios such as commercial buildings, industrial factories, data centers, etc. The core function of the product focuses on the safe and stable operation of indoor power distribution.
The core function of the product focuses on the safe and stable operation of indoor power distribution, integrating high insulation performance and ultra-low loss design, which can effectively inhibit harmonics and resist over-voltage, and the no-load loss is further reduced compared with the previous generation of the product, which can satisfy the differentiated operational needs of indoor power distribution systems in different regions of the world, and meanwhile, it has passed a number of international certifications, which is in line with the international market access standards.
Its application field covers commercial complexes, industrial and mining enterprises, data centers, new energy supporting power distribution, etc. By virtue of standardized production and customization capabilities, it can be adapted to the frequency and voltage requirements of different national power grids around the world, and it is a new generation of high-efficiency indoor power distribution equipment launched by Golden Horse Electric for the international market, which will help the global low-carbon upgrade of the indoor power distribution system.
| Model No. | Rated Capacity (kVA) | Vector Group | HV Voltage (kV) | Tap Range | LV Voltage (kV) | No-load Loss (W) | Load Loss (W) @ 120℃ (F) | No-load Current (%) | Short-circuit Impedance (%) |
| SC13-30 | 30 | Yyn0 or Dyn11 | 10/6.3/6 | ±5%; ±2×2.5%; | 0.4 | 135 | 640 | 2 | 4 |
| SC13-50 | 50 | 195 | 900 | 2 | |||||
| SC13-80 | 80 | 265 | 1240 | 1.5 | |||||
| SC13-100 | 100 | 290 | 1410 | 1.5 | |||||
| SC13-125 | 125 | 340 | 1660 | 1.3 | |||||
| SC(B)13-160 | 160 | 385 | 1910 | 1.3 | |||||
| SC(B)13-200 | 200 | 445 | 2270 | 1.1 | |||||
| SC(B)13-250 | 250 | 515 | 2480 | 1.1 | |||||
| SC(B)13-315 | 315 | 635 | 3120 | 1 | |||||
| SC(B)13-400 | 400 | 705 | 3590 | 1 | |||||
| SC(B)13-500 | 500 | 835 | 4390 | 1 | |||||
| SC(B)13-630 | 630 | 965 | 5290 | 0.85 | |||||
| SC(B)13-630 | 630 | 935 | 5360 | 0.85 | 6 | ||||
| SC(B)13-800 | 800 | 1090 | 6260 | 0.85 | |||||
| SC(B)13-1000 | 1000 | 1270 | 7310 | 0.85 | |||||
| SC(B)13-1250 | 1250 | 1500 | 8720 | 0.85 | |||||
| SC(B)13-1600 | 1600 | 1760 | 10500 | 0.85 | |||||
| SC(B)13-2000 | 2000 | 2190 | 13000 | 0.7 | |||||
| SC(B)13-2500 | 2500 | 2590 | 15400 | 0.7 |
Jinma Electric strictly audit the production qualification, international certification and equipment level of the cooperative factories, and require the factories to meet the international quality standards of Jinma Electric, equipped with professional quality inspection system, and regular inspections to ensure that each batch of products to meet the quality requirements for foreign trade exports.
Yes, customers can make an appointment in advance, Golden Horse Electric will arrange professional personnel to accompany the visit to the production, testing and warehousing workshop, to introduce the product production process and quality control links.
The regular order cycle is 25-45 days, customized orders are adjusted as needed; the products adopt modular packaging, suitable for international sea / air transportation, can cooperate with customers to complete the booking, customs clearance and other processes.
The product has better energy efficiency, stronger fireproof performance, has many international certifications, the delivery cycle is more than 50% shorter than the European and American manufacturers, more cost-effective, and provide multi-language technical support at the same time.
The accessories are made of high-quality raw materials in line with international standards, following IEC 60076 and other international standards, through the third-party testing, to meet the requirements of environmental protection and safety for foreign trade and export, and can provide test reports.
Yes, the product has greatly reduced no-load loss, higher energy efficiency, fire and explosion-proof, and is perfectly suited for data centers, commercial complexes and other indoor scenes with high requirements for energy consumption and safety.
Yes, Jinma Electric has cooperative after-sales outlets around the world, which can provide remote troubleshooting, on-site maintenance, technical guidance and multi-language technical documents.
Yes, Jinma can customize the voltage, capacity, protection level and other relevant parameters according to the grid parameters and project requirements of the customer’s region.
The use of high-strength anti-vibration packaging, core components are fixed separately, marked with the international common transportation mark, can effectively avoid damage in international long-distance transportation.
Customers provide grid parameters, project scenarios and the use of the environment, Jinma Electric will arrange professional and technical personnel to accurately match and provide targeted selection recommendations
