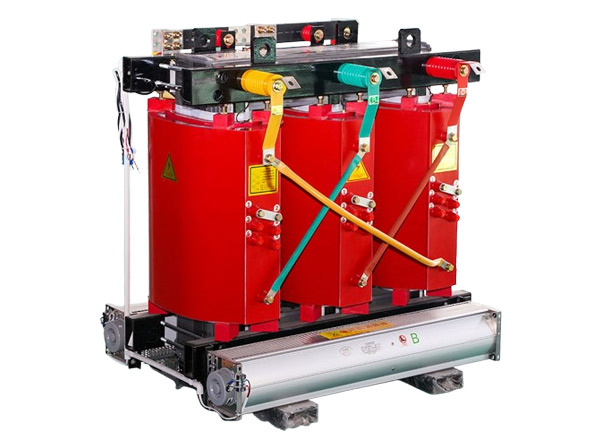

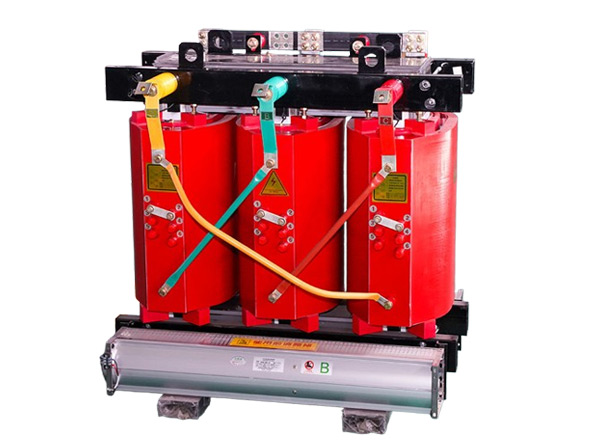

SCB14 6-11KV Dry Type Transformer

SCB14 Dry Type Transformer is an efficient, power-saving distribution transformer of home appliances modern electrical system.
Defining high voltage insulation and cast resin. Using state of the art epoxy resin cast technology, it provides high voltage insulation, increases safety, peace of mind, and consistency in the most extreme environments. For commercial, industrial, and renewable energy uses.

GET IN TOUCH Send Email

Share With:

Overview

parameter

feature

case

FAQ

inquiry

GET IN TOUCH

PRODUCT OVERVIEW

The dry type used vacuum casting technique with epoxy resin of SCB14, which has the outstanding property of moisture reistant, flame reistant and environmental protective. This dry type transformer is compared with traditional oil filled transformer does not have fire hazard and leakage oil risk, so the others can use safe, like hospital, datacenter, and high building.

Thanks to the optimized electromagnetic design, the SC B14 transformer is able to greatly lower the no-load losses and the load losses as well. The ladder transformation of the transformer reduces the overall energy losses while the robust insulation guarantees the effective handling of high loads. The transformer features a molded structure, guarantees a easy installation, and cheap maintenance; its thermal capabilities provide excellent performances under maximum loads.

PRODUCT PARAMETERS

Model No.	Rated Capacity (kVA)	HV Voltage (kV)	Tap Range	LV Voltage (kV)	No-load Loss (W)	Load Loss (W)			No-load Current (%)	Short-circuit Impedance (%)
Model No.	Rated Capacity (kVA)	HV Voltage (kV)	Tap Range	LV Voltage (kV)	No-load Loss (W)	B(100℃)	F(120℃)	H(145℃)	No-load Current (%)	Short-circuit Impedance (%)
SC(B)14-30	30	6/6.3/6.6/10/10.5/11	±2×2.5% / ±5%	0.4	130	605	640	685	2	4
SC(B)14-50	50				185	845	900	965	2
SC(B)14-80	80				250	1160	1240	1330	1.5
SC(B)14-100	100				270	1330	1415	1520	1.5
SC(B)14-125	125				320	1565	1665	1780	1.3
SC(B)14-160	160				365	1800	1915	2050	1.3
SC(B)14-200	200				420	2135	2275	2440	1.1
SC(B)14-250	250				490	2330	2485	2665	0.9
SC(B)14-315	315				600	2945	3125	3355	0.8
SC(B)14-400	400				665	3375	3590	3850	0.8
SC(B)14-500	500				790	4130	4390	4705	0.8
SC(B)14-630	630				910	4975	5290	5660	0.7
SC(B)14-630	630				885	5050	5365	5760	0.7	6.0~8.0
SC(B)14-800	800				1035	5895	6265	6715	0.7
SC(B)14-1000	1000				1205	6885	7315	7885	0.7
SC(B)14-1250	1250				1420	8190	8720	9335	0.7
SC(B)14-1600	1600				1665	9945	10555	11320	0.7
SC(B)14-2000	2000				2075	12240	13005	14005	0.6
SC(B)14-2500	2500				2450	14535	15445	16605	0.6

Product feature

Tell us your power, metallurgy or substation project needs, and our professional team will provide you with a tailored quote and detailed solution within 24 hours!

Ultra-Low Energy Loss

The SCB14 transformer is designed with optimized magnetic circuit and high-quality silicon steel core. Because of that, it has low no-load and load loss, which can improve energy efficiency, reduce electricity consumption and cut down the cost.

High Safety & Fire Resistance

Dark green flame-retardant epoxy resin and non-combustible materials are used in manufacture, overcoming the problem of fire. The transformer has very good fire resistance and self-extinguishing qualities, producing no fire, explosion or toxic gases, suitable to safety critical indoor locations.

Maintenance-Free Operation

Unlike oil filled transformers, no oil handling, testing, or replacement is required for the SCB14. Its completely sealed dry type construction results in no risk of leakage, no risk of contamination of any kind and limits the level of maintenance required, for a minimum of disruption and reduced lifetime costs.

Strong Environmental Adaptability

The SCB14 is manufactured with the specific ability to perform efficiently under extreme environments, and performs great under conditions of high humidity, dusts, and contaminated atmospheres. The moisture-proofing system of this product provides operation for industrial, as well as maritime environments.

Low Noise Operation

A precision core design along with the manufacturing processes used, helps to reduce both vibration and electromagnetic noise. All of this results in a quiet operation that can be used in areas that require low emissions such as offices, hospitals and apartment blocks.

Long Service Life

Constructed from the finest insulating materials, reinforced technology and solid structure design, the SC B14 has excellent aging resistance and temperature stabilization.
