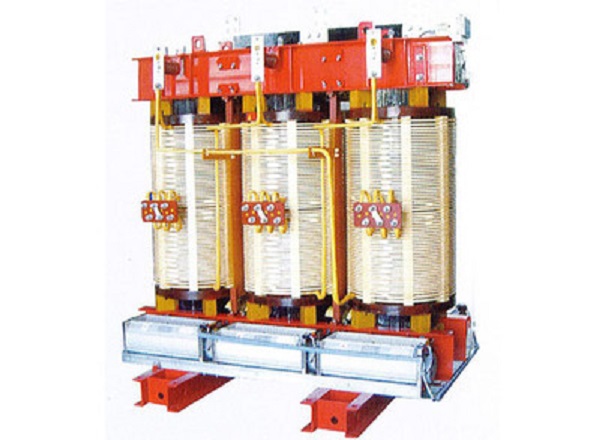

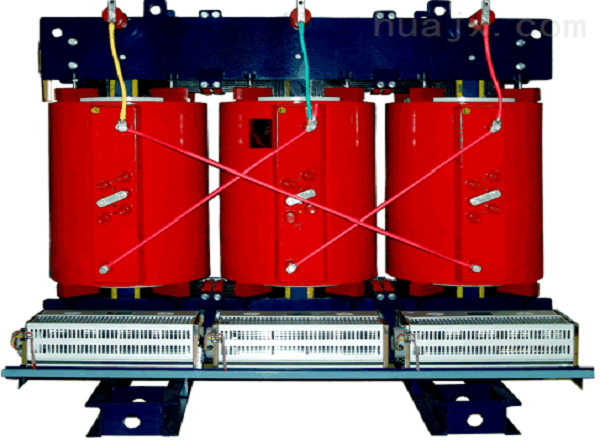

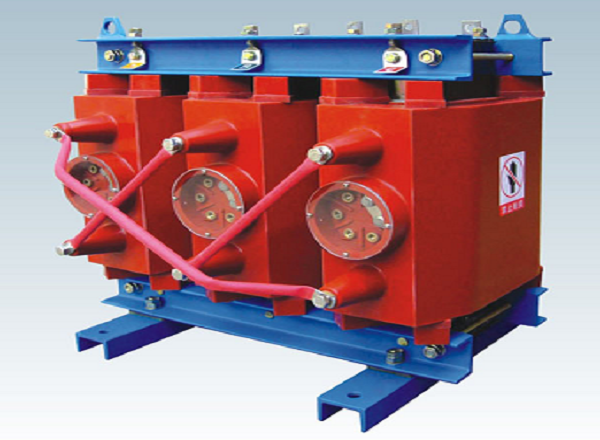

SC (B) 12-10kV dry-type transforme is SC (B) 12 series 10kV dry-type transformer specially developed for indoor power distribution system by Jinma Electrical Appliances. It adopts epoxy resin vacuum casting process, and its core function is to realize safe conversion and distribution of electric energy, oil-free and pollution-free, fire-retardant, and it is suitable for indoor distribution scenarios such as commercial buildings, industrial factories, data centers, etc. The product’s core function focuses on the safe and stable operation of indoor power distribution system.
The core function of the product focuses on the safe and stable operation of indoor power distribution, integrating high insulation performance and low-loss design, which can effectively inhibit harmonics and resist over-voltage to meet the different operational needs of indoor power distribution systems in different regions of the world, and at the same time passes a number of international certifications, which is in line with the international market access standards.
Its application field covers commercial complexes, industrial and mining enterprises, data centers, new energy supporting power distribution, etc. By virtue of standardized production and customization ability, it can be adapted to the frequency and voltage requirements of power grids in different countries around the world, and it is the core indoor power distribution equipment launched by Golden Horse Electric for the international market, which can help upgrade the safety of the global indoor power distribution system.
| Model No. | Rated Capacity (kVA) | HV Voltage (kV) | Tap Range | LV Voltage (kV) | No-load Loss (W) | Load Loss (W) | No-load Current (%) | Short-circuit Impedance (%) | ||
| B(100℃) | F(120℃) | H(145℃) | ||||||||
| SC(B)12-30 | 30 | 6/6.3/6.6/10/10.5/11 | ±2×2.5% / ±5% | 0.4 | 150 | 670 | 710 | 760 | 2 | 4 |
| SC(B)12-50 | 50 | 215 | 940 | 1000 | 1070 | 2 | ||||
| SC(B)12-80 | 80 | 295 | 1290 | 1380 | 1480 | 1.5 | ||||
| SC(B)12-100 | 100 | 320 | 1480 | 1570 | 1690 | 1.5 | ||||
| SC(B)12-125 | 125 | 375 | 1740 | 1850 | 1980 | 1.3 | ||||
| SC(B)12-160 | 160 | 430 | 2000 | 2130 | 2280 | 1.3 | ||||
| SC(B)12-200 | 200 | 495 | 2370 | 2530 | 2710 | 1.1 | ||||
| SC(B)12-250 | 250 | 575 | 2590 | 2760 | 2960 | 0.9 | ||||
| SC(B)12-315 | 315 | 705 | 3270 | 3470 | 3730 | 0.8 | ||||
| SC(B)12-400 | 400 | 785 | 3750 | 3990 | 4280 | 0.8 | ||||
| SC(B)12-500 | 500 | 930 | 4590 | 4880 | 5230 | 0.8 | ||||
| SC(B)12-630 | 630 | 1070 | 5530 | 5880 | 6290 | 0.7 | ||||
| SC(B)12-630 | 1040 | 5610 | 5960 | 6400 | 0.7 | 6.0~8.0 | ||||
| SC(B)12-800 | 800 | 1215 | 6550 | 6960 | 7460 | 0.7 | ||||
| SC(B)12-1000 | 1000 | 1415 | 7650 | 8130 | 8760 | 0.7 | ||||
| SC(B)12-1250 | 1250 | 1670 | 9100 | 9690 | 10370 | 0.7 | ||||
| SC(B)12-1600 | 1600 | 1960 | 11050 | 11730 | 12580 | 0.7 | ||||
| SC(B)12-2000 | 2000 | 2440 | 13600 | 14450 | 15560 | 0.6 | ||||
| SC(B)12-2500 | 2500 | 2880 | 16150 | 17170 | 18450 | 0.6 | ||||
Jinma Electric strictly audit the qualification, certification and equipment level of the cooperative factories, and require the factories to meet the international quality standards of Jinma Electric, equipped with professional quality inspection system, and regular inspections to ensure that the products meet the quality requirements for foreign trade exports.
Yes, customers can make an appointment in advance, Jinma Electric will arrange professional personnel to accompany the visit to the production, testing and warehousing workshop, introducing the product production process and quality control links.
The regular order cycle is 25-45 days, customized orders are adjusted as needed; the product adopts modular packaging, suitable for international sea / air transportation, can cooperate with customers to complete the booking, customs clearance and other processes.
The products have better fire protection performance, lower energy consumption, many international certifications, the delivery cycle is more than 50% shorter than the European and American manufacturers, more cost-effective, and provide multi-language technical support.
The accessories are made of high-quality raw materials in line with international standards, following IEC 60076 and other international standards, through the third-party testing, to meet the environmental protection and safety requirements of foreign trade exports, and can provide test reports.
Yes, the product has fire and explosion-proof characteristics, perfectly suited to high-rise buildings, data centers, commercial complexes and other indoor scenes, in line with international indoor safety standards.
Yes, Jinma Electric has cooperative after-sales network in the world, which can provide remote troubleshooting, on-site maintenance, technical guidance and multi-language technical documents.
Yes, Jinma can customize the voltage, capacity, protection level and other relevant parameters according to the grid parameters and project requirements of the customer’s region.
The use of high-strength anti-vibration packaging, core components are fixed separately, marked with the international common transportation mark, can effectively avoid damage in international long-distance transportation.
Customers provide grid parameters, project scenarios and the use of the environment, Jinma Electric will arrange professional and technical personnel to accurately match and provide targeted selection recommendations
