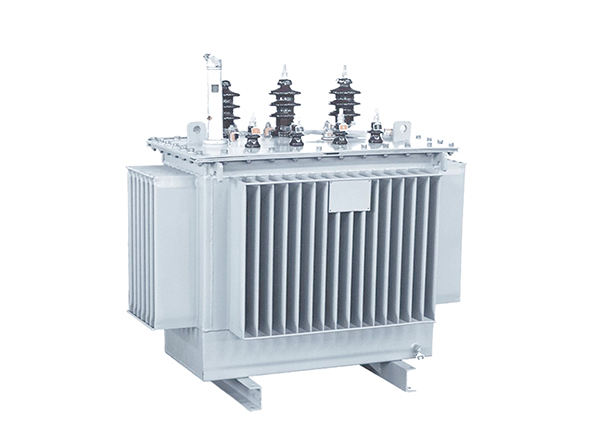

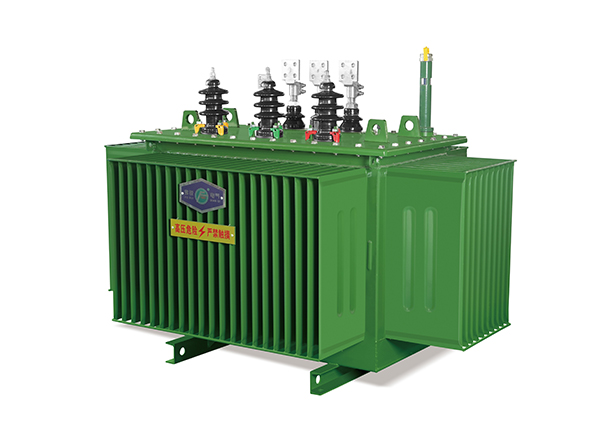

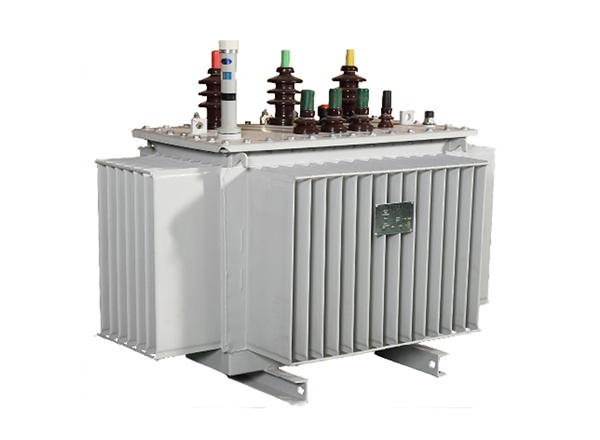

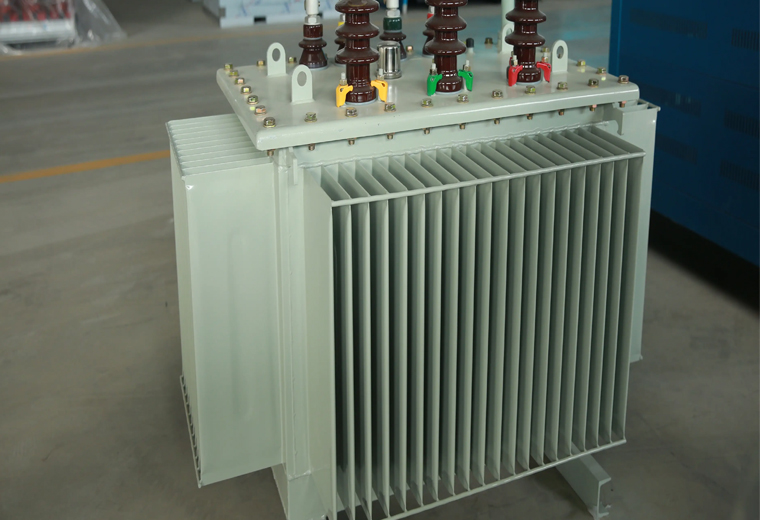

10kV fully sealed oil-immersed transformer developed and produced by Jinma Electric Power has the advantages of low loss, low noise and high energy efficiency, achieving remarkable energy-saving effects and reducing operational costs. Unlike conventional oil-immersed transformers, this fully sealed model eliminates the traditional oil conservator. The expansion and contraction of transformer oil are automatically compensated by the elasticity of the corrugated tank wall, completely isolating the oil from air and moisture. This effectively prevents oil deterioration and insulation aging, significantly enhances operational reliability, and enables maintenance-free operation under normal working conditions.
10kV Hermetically Sealed Oil-Immersed transformers is specially designed with enhanced anti-corrosion treatment for the tank and structural components, making it highly suitable for coastal, high-humidity, chemically corrosive and other harsh operating environments. Equipped with high-quality cold-rolled grain-oriented silicon steel cores and pure copper windings, it boasts strong short-circuit withstand capability, stable performance and long service life. Widely used in urban power grids, industrial parks, mining enterprises and rural power distribution systems, it provides safe, reliable and durable power supply solutions for various power distribution scenarios.
| Rated Capacity (KVA) | Voltage Combination | Vector Group | No-load Loss(KW) | Load Loss (KW) | No-load Current % | Short-circuit impedance | Weight(KG) | |||
| High Voltage (KA) | High Voltage Tapping Range | Low Voltage (KA) | Oil Weight | Gross Weight | ||||||
| 30 | 20~10 | ±5×2.5% ±2×2.5% | 0.4 | Dyn1 1 | 0.09 | 0.66 | 2.1 | 5.5 | 180 | 420 |
| 50 | 0.13 | 0.96 | 2 | 150 | 495 | |||||
| 63 | 0.15 | 1.145 | 1.9 | 170 | 560 | |||||
| 80 | 0.18 | 1.37 | 1.8 | 190 | 635 | |||||
| 100 | 0.20 | 1.65 | 1.6 | 215 | 710 | |||||
| 125 | 0.24 | 1.98 | 1.5 | 250 | 840 | |||||
| 160 | 0.29 | 2.42 | 1.4 | 285 | 945 | |||||
| 200 | 0.33 | 2.86 | 1.3 | 340 | 1125 | |||||
| 250 | 0.40 | 3.35 | 1.2 | 390 | 1295 | |||||
| 315 | 0.48 | 4.01 | 1.1 | 445 | 1475 | |||||
| 400 | 0.57 | 4.73 | 1.0 | 515 | 1712 | |||||
| 500 | 0.68 | 5.66 | 1.0 | 6.0 | 460 | 1995 | ||||
| 630 | 0.81 | 6.82 | 0.9 | 565 | 2450 | |||||
| 800 | 0.98 | 8.25 | 0.8 | 635 | 2765 | |||||
| 1000 | 1.15 | 11.33 | 0.7 | 840 | 3650 | |||||
| 1250 | 1.35 | 13.20 | 0.7 | 970 | 4220 | |||||
| 1600 | 1.63 | 15.95 | 0.6 | 1105 | 4800 | |||||
| 2000 | 1.95 | 19.14 | 0.6 | 1205 | 5240 | |||||
| 2500 | 2.34 | 22.22 | 0.5 | 1300 | 5650 | |||||
We Jinma Electric is a professional factory with 10 years experience in the field of High and low Voltage switchgears, Substation ,transformers,cable distribution box and various electrical equipment, such as vacuum circuit breaker , load break switch etc.
We Jinma Electric offers OEM/ODM service , can print your logo on product . our professional technical and quotation team can provice a satisfied project according to your drawing and parameters .
Our MOQ is 1 piece.
It depends on your product requirement and quantity . Generally , 5~10 working days is avaliable .
Please porvide detailed photoes of quality problems. our technical and quality testing department will analyse.we will make a satisfied soluton within 2 days .
30%T/T in adcance,70% before shipment . West union , L/C are also acceptable .
Our products are designed and manufactured in accordance with IEC, GB, CE, GOST and other international standards, and all products pass strict testing before delivery.
We Jinma Electric carries out strict raw material inspection, semi-finished product testing and full inspection before shipment. We can provide test reports, QC documents and factory acceptance test (FAT).
Yes. We Jinma Electric provides long-term technical guidance, online troubleshooting and after-sales service to ensure the stable operation of your equipment.
We Jinma Electric provides a 2-year warranty period. During the warranty period, we will provide free maintenance and parts replacement for quality problems.
We Jinma Electric uses standard export plywood cases or iron brackets to ensure safe transportation. We can also provide customized packaging according to customer requirements.
Yes. We Jinma Electric can provide one-stop solutions including transformers, switchgears, substations, circuit breakers and complete power distribution equipment.
