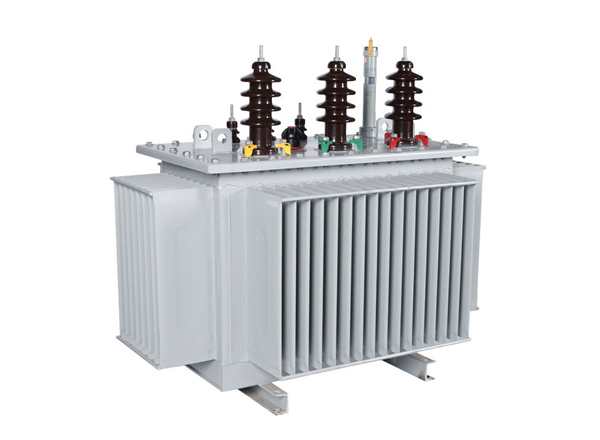

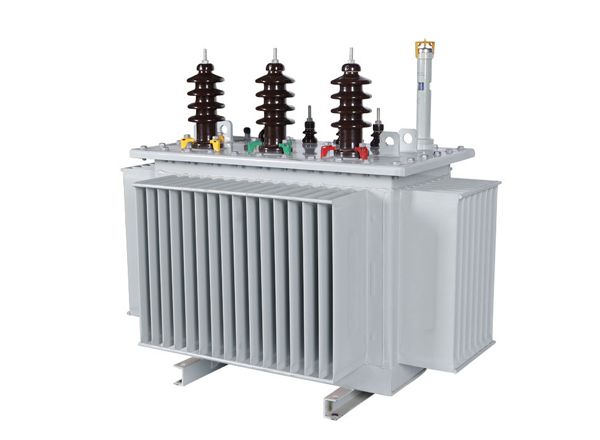

S13 6-10KV Oil Immersed Transformer

Type S13 Oil immersed Transformer is a power distribution with high efficiency and energy saving type, reduce no load loss and improve power system stability. It provides anti-noise and long service life with reliable performance, is a very good power equipment.

GET IN TOUCH Send Email

Share With:

Overview

parameter

feature

case

FAQ

inquiry

GET IN TOUCH

PRODUCT OVERVIEW

The is a new oil immersed type transformer that constructed with newest core material and optimized structure design, which can greatly decrease the no load loss of the traditional type transformer. It used single wave silicon steel sheets and high-precision winding process for outstanding electric property and energy saving.

The transformer is filled with top-grade insulating oil with high thermal conductivity and dielectric strength. It is suitable for various load conditions in the field of operation. Its sealed tank has blocked-out effect to inhibit the oxidation of its oil and no absorption of moist air, resulting in lower costs and longer life.

S13 transformers are important small power distribution devices. They are often used at electric power plant, substation, industrial, commercial and infrastructure applications in a power network. Excellent overload ability, low temperature rise, and reliable short-circuit strength make them an ideal choice for time-saving and efficient power distribution.

PRODUCT PARAMETERS

Model	Rated Capacity (kVA)	Vector Group Symbol	HV Voltage (kV)	Tap Range	LV Voltage (kV)	No-load Loss (W)	Dy Load Loss (W)	Yy Load Loss (W)	No-load Current (%)	Short-circuit Impedance (%)
S13-M-30	30	Yyn0 or Dyn11	10 / 6.3 / 6	±5% / ±2×2.5%	0.4	80	630	600	1.5	4
S13-M-50	50					100	910	870	1.3
S13-M-63	63					110	1090	1040	1.2
S13-M-80	80					130	1310	1250	1.2
S13-M-100	100					150	1580	1500	1.1
S13-M-125	125					170	1890	1800	1.1
S13-M-160	160					200	2310	2200	1
S13-M-200	200					240	2730	2600	1
S13-M-250	250					290	3200	3050	0.9
S13-M-315	315					340	3830	3650	0.9
S13-M-400	400					410	4520	4300	0.8
S13-M-500	500					480	5410	5150	0.8
S13-M-630	630					570	6200	6200	0.6	4.5
S13-M-800	800					700	7500	7500	0.6
S13-M-1000	1000					830	10300	10300	0.6
S13-M-1250	1250					970	12000	12000	0.5
S13-M-1600	1600					1170	14500	14500	0.5
S13-M-2000	2000					1550	18300	18300	0.4	5
S13-M-2500	2500					1830	21200	21200	0.4	5

Product Feature

Ultra-Low No-Load Loss

Designed with high-permeability silicon steel core and magnetic circuit optimized design to minimize no-load loss, reduce energy waste, and help enabling user to save long term operating costs.

High Energy Efficiency

Aimed at complying with the lowest limit of energy efficiency, this transformer enhances energy efficiency, minimizes the draw of electricity and facilitates creation of eco-friendly power distribution network.

Reliable Thermal Performance

The high-quality insulating oil, state-of-the art heat dissipation structure are adopted by the unit to make the cooling efficiency high, stable temperature increasing Control, running reliably under high load.

Fully Sealed Structure

Utilizes a hermetically sealed tank design which prevents the ingress of air, moisture and contaminates thereby reducing oil oxidation and increasing insulation life and reducing maintenance costs.

Low Noise Operation

The improved specification core stacking and vibration-reduction design ensures minimum noise from operations, suitable for placement in noise-sensitive environments such as city centres and commercial areas.

Strong Durability & Long Lifespan

Built from high quality materials and effective mechanical construction leading to a high degree of immunity to short circuits, overloads, adverse conditions with a long service life and below minimum maintenance.

Reliable Quality
Better Price

Reliable Quality to Avoid Risks, Better Price to Cut Costs, Faster Delivery to Seize Opportunities!
