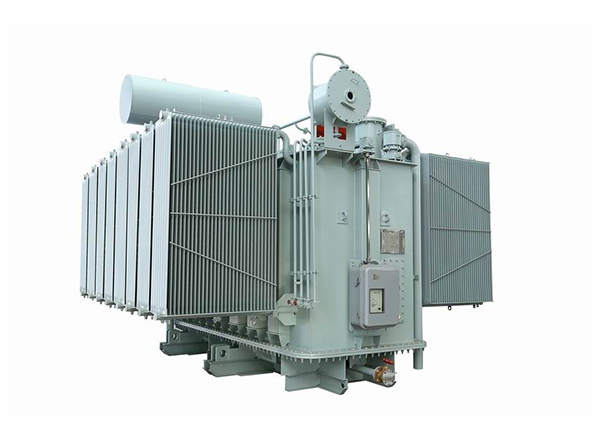

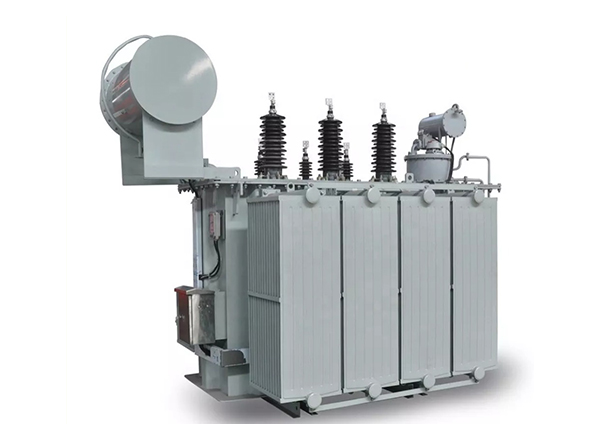

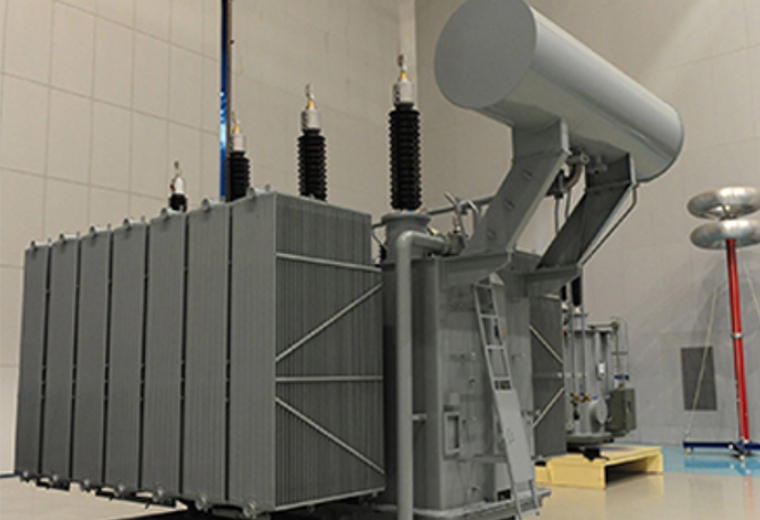

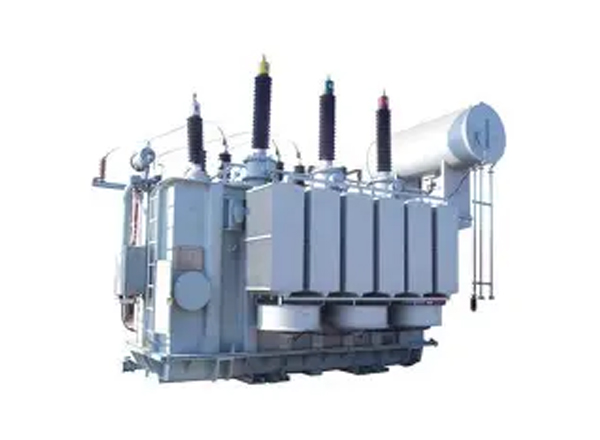

110kV oil‑immersed power transformer is manufactured in strict accordance with IEC 60076, GB 1094 and other international standards. It features low loss, low noise, high mechanical strength, strong short‑circuit withstand capability, reliable sealing and low maintenance. It is widely used in distribution substations, industrial and mining enterprises, urban power grids and rural power transmission projects.
This series transformer adopts high‑quality core materials, optimized winding structure and robust oil tank design, with stable performance and long service life. It supports multiple cooling methods, insulating medium options and on‑load tap changers, and can be customized in capacity, voltage, vector group and technical parameters. Equipped with complete safety protection devices, it provides stable and safe operation for various high‑voltage power supply scenarios.
| Product Model | Rated Capacity (kVA) | Vector Group Symbol | HV Voltage (kV) | Tap Range | LV Voltage (kV) | No-load Loss (W) | Load Loss (W at 75℃) | No-load Current (%) | Short-circuit Impedance (%) |
| SZ20 | 63000 | YNd11 | 115 | ±8×1.25% | 37 | 29500 | 104440 | 0.34 | 14 |
| SZ20 | 315000 | YNd11 | 110 | ±8×1.25% / ±8.5±2×2.5% | 10.5 | 209000 | 1340000 | 0.5 | 10.5 / 17.5~18.5 / 6.0 |
| SZ11 | 100000 | YNd11 | 115 | ±9×1.78% | 11 | 10900 | 74440 | 0.47 | 10.5 |
We maintain a flexible MOQ starting from 1 set to support various project scales. For standard specifications, the typical production lead-time is approximately 10 working days upon receipt of the deposit and final technical confirmation.
Our warranty period is two year.
1.We offer highly competitive prices while ensuring the highest product quality.
2.For urgent orders, we can shorten the production cycle to meet your delivery requirements.
3.We have a professional and independent drawing team and technical team, it is expected that we can confirm all the contents on the drawings with you within 7 days.
4.With extensive experience in global collaboration, our team responds promptly to your needs-saving time and achieving mutual success.
We provide a pre-production sample before mass production; Always conduct final inspection before shipment. We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on CE/IEC/GOST standard. Successively obtain ISO9001, ISO14001, ISO45001 certificate.
We strictly adhere to export-standard packaging to ensure the safety of goods during transit additionally, we are fully flexible and can customize the packaging according to specific customer requirements.
We are the exclusive overseas distributor officially authorized by the manufacturer, responsible for international market development, technical coordination, and global customer service.
Wire transfer (T/T), letter of credit (L/C), and any payment method supported by MIC are acceptable.30%-50% deposit upon order confirmation.Balance(50%-70%) due before dispatch.
Yes, absolutely. We understand that different countries and regions have specific requirements regarding voltage, frequency, and environmental conditions.
Yes, absolutely. We Jinma Electric understand that different countries and regions have specific requirements regarding voltage, frequency, and environmental conditions.
Our products are designed and manufactured in accordance with IEC, GB, CE, GOST and other international standards, fully meeting the requirements of global power projects.
We can supply oil-immersed transformers, dry-type transformers, power transformers up to 500kV 480MVA, GIS, switchgears, prefabricated substations and complete power distribution equipment.
Yes. We offer full-life technical support, on-site guidance, online troubleshooting and professional after-sales service to ensure stable operation of your equipment.
Sure. We can provide QC test reports, type test reports, ISO certificates, CE certificates and other required certification documents.
