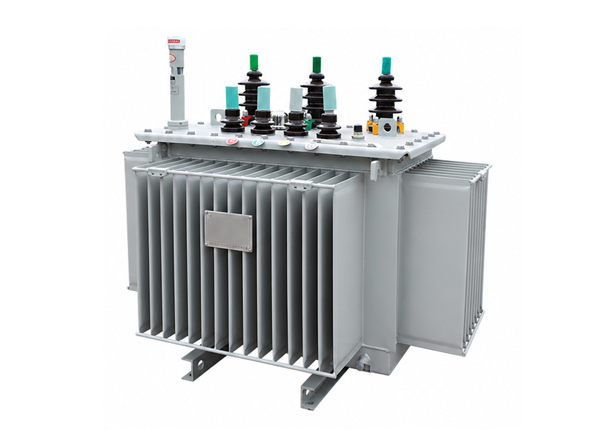

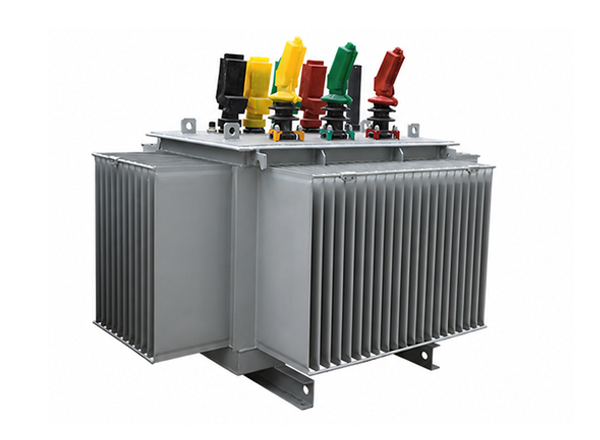

S18 10KV Oil Immersed Transformer

S18 Oil Immersed Transformer Practical Energy-efficient transformer for the energy-conscious power distribution networks of today. Designed with modern core materials and optimized structure, practical S18 Oil Immersed Transformer provides reduced losses, increased reliability and consistent long-term operation for industrial, commercial and utility sites.

GET IN TOUCH Send Email

Share With:

Overview

parameter

feature

case

FAQ

inquiry

GET IN TOUCH

PRODUCT OVERVIEW

The S18 Oil Immersed Transformer is another giant leap in transformer efficiency and reliability. Equipped with high permeability silicon steel cores and state of the art winding technology, the Transformer greatly reduces no-load as well as load losses, over its predecessor.

The oil immersed cooling system guarantees excellent heat dissipation so that it runs steadily not only under no load but also under full load. The transformer is a totally-enclosed construction type to prevent the penetration of moisture and oxidation of oil, and thereby enlarges service life.

The S18 transformer, U and I rated according to the international norms, is often used in the Electric Power Plant, Subsystem, Industry and City Grid. With excellent over load capacity and insulation, it provides such safe, continuous and enough electric power transmission.

PRODUCT PARAMETERS

Rated Capacity (kVA)	Voltage Combination (kV)	Vector Group	No-load Loss (W)	Load Loss (W)	No-load Current (%)	Short-circuit Impedance (%)
30	10/0.4	Dyn11/Yyn0	70	600	1.2	4
50			95	870	1.1
100			150	1500	1
200			240	2600	0.9
315			340	3650	0.8
400			400	4300	0.7
500			480	5150	0.6
630			570	6200	0.5
800			680	7500	0.5	4.5
1000			800	10300	0.4
1250			950	12000	0.4
1600			1100	14500	0.3
2000			1300	17500	0.3	5.5
2500			1550	20200	0.3	5.5

Product Feature

Ultra-Low Energy Loss

Uses state of the art core materials and refined magnetic circuit design to drastically reduce no load and load losses, enabling the end user to operate the system at a lower electrical consumption and at a lower cost.

Excellent Heat Dissipation Performance

The oil-immsered cooling system can smooth run and transfer heat efficiently. It ensures steady state temperature control and can work reliably under high load or continuous working.

High Reliability & Long Service Life

Sealed tank design, all the air and moisture go from the vent on the top of the tank. No oxygen or moisture occurs into the tank, no aging of the insulation and no deterioration in the oil, so the long service life and maintenance is less.

Strong Overload Capacity

The transformer is designed with good quality winding and tough insulation structure to support transient overload, ensuring the power is continuous in maximum demand.

Superior Insulation Performance

Using high-grade insulating materials and with advanced processing technology, dielectric strength is excellent and the operation is safe.

Low Noise Operation

The optimized core structure and the precise assembly of the patent considerably lower the vibration and noise level, which makes it appropriate to be used in social environment as city of places where noise is restricted.

Reliable Quality
Better Price

Reliable Quality to Avoid Risks, Better Price to Cut Costs, Faster Delivery to Seize Opportunities!
