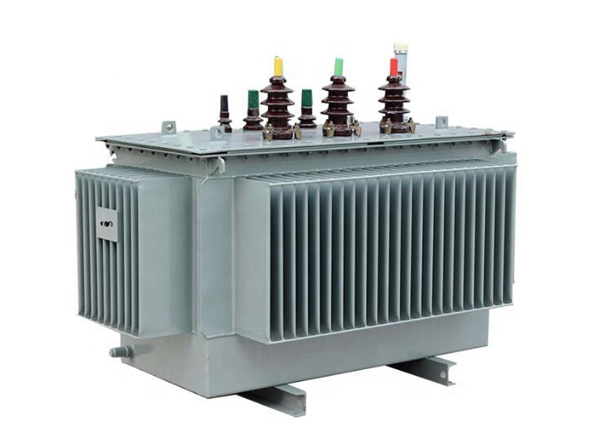

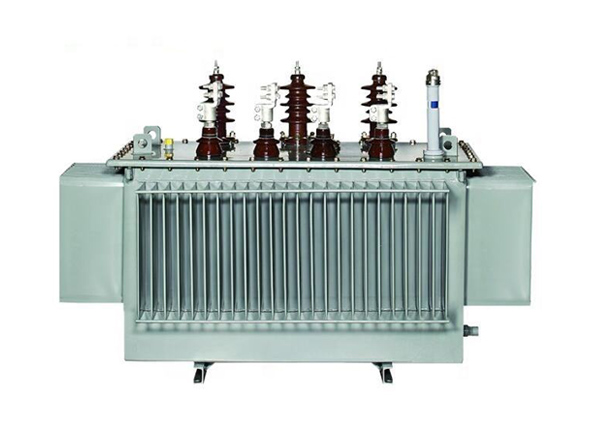

SH15 Amorphous Alloy Oil Immersed Transformer

The SH15 Amorphous Alloy Oil Immersed Transformer is a cutting-edge, energy-efficient power transformer designed with the latest amorphous metal core technology. It offers substantial reduction in no-load losses, improved reliability for dependable operation, and aligns perfectly with the contemporary grid requirement for energy conservation, efficiency and savings in operational costs over the long term.

GET IN TOUCH Send Email

Share With:

Overview

parameter

feature

case

FAQ

inquiry

GET IN TOUCH

PRODUCT OVERVIEW

SH15 Amorphous Alloy Oil Immersed Transformer has good energy saving and stable performance, which designed and manufactured for modern power distribution system. It adopts amorphous alloy as high performance core material, highly reducing the no-load loss of transformer, compared with silicon steel transformer.

A robust and reliable design, the SH15 utilizes an advanced winding arrangement, a proven insulation system and highly efficient oil cooling system to provide an excellent temperature rise, long life and low maintenance.

Its durable construction combined with a proven manufacturing process ensure a high degree of protection against short-circuits, overloading and environmental stress. The SH15 is used extensively in city grids, manufacturing sites, sustainable energy developments and infrastructure projects to help lower running costs.

PRODUCT PARAMETERS

Model	Rated Capacity (kVA)	Vector Group Symbol	HV Voltage (kV)	Tap Range	LV Voltage (kV)	No-load Loss (W)	Dy Load Loss (W)	Yy Load Loss (W)	No-load Current (%)	Short-circuit Impedance (%)
SH15-M-30	30	Dyn11	6 / 6.3 / 10 / 10.5 / 11	±5% or ±2×2.5%	0.4	33	630	600	1.5	4
SH15-M-50	50					43	910	870	1.2
SH15-M-63	63					50	1090	1040	1.1
SH15-M-80	80					60	1310	1250	1
SH15-M-100	100					75	1580	1500	0.9
SH15-M-125	125					85	1890	1800	0.8
SH15-M-160	160					100	2310	2200	0.6
SH15-M-200	200					120	2730	2600	0.6
SH15-M-250	250					140	3200	3050	0.6
SH15-M-315	315					170	3830	3650	0.5
SH15-M-400	400					200	4520	4300	0.5
SH15-M-500	500					240	5410	5150	0.5
SH15-M-630	630					320	6200	6200	0.3	4.5
SH15-M-800	800					380	7500	7500	0.3
SH15-M-1000	1000					450	10300	10300	0.3
SH15-M-1250	1250					530	12000	12000	0.2
SH15-M-1600	1600					630	14500	14500	0.2
SH15-M-2000	2000					750	18300	18300	0.2	5
SH15-M-2500	2500					900	21200	21200	0.2	5

Product Feature

Ultra-Low No-Load Losses

Using amorphous alloy core materials can greatly decrease the no-load losses for up to 70% in comparison with traditional transformers, therefore will help consumers save large energy and cost in long term operation.

Excellent Energy Efficiency Performance

The units if designed to specified high energy efficiency requirements from the transformer will reduce energy loss in the shop during operation and are suitable for use in smart grids, renewable energy systems, energy efficient applications.

Reliable Thermal Performance

The high-quality insulating oil, state-of-the art heat dissipation structure are adopted by the unit to make the cooling efficiency high, stable temperature increasing Control, running reliably under high load.

Strong Overload and Short-Circuit Resistance

A very robust construction and mechanical strength of the transformer provides a high withstand to sudden changes of loads and short-circuit and delivers the stable operation and reduces its faults.

Long Service Life with Low Maintenance

Better materials and precision manufacturing will make the transformer last longer, less maintenance and contribute to reduce the lifecycle costs and efficiency.

Environmentally Friendly and Sustainable

This energy-saving amorphous alloy technology will reduce the carbon dioxide emissions and energy consumption, promote the environment compatible power system, and contribute to a company to achieve strategies of environment and sustainability protection.
