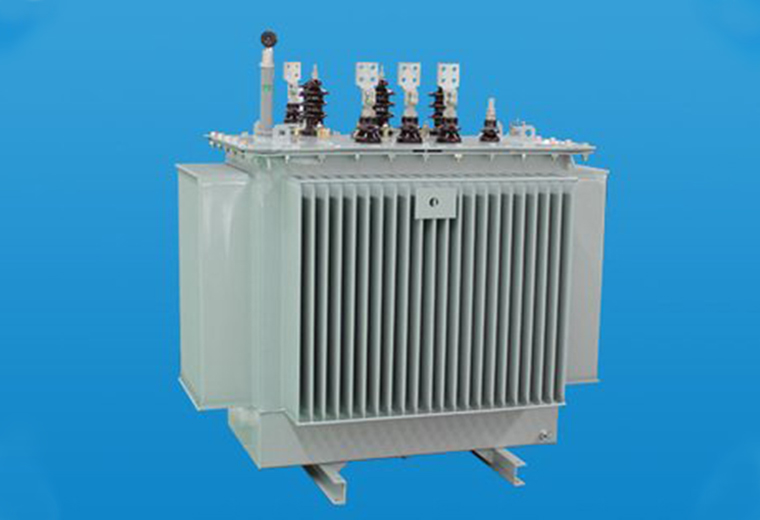

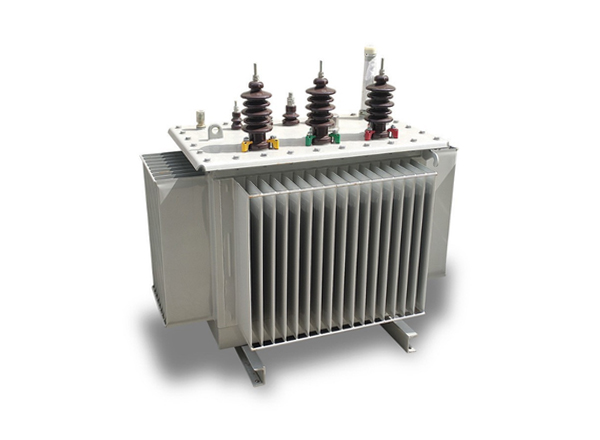

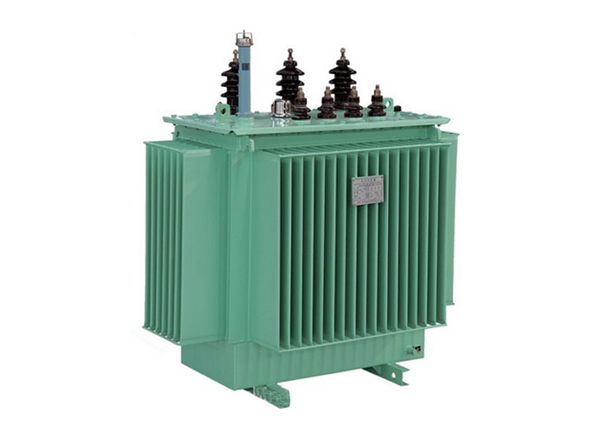

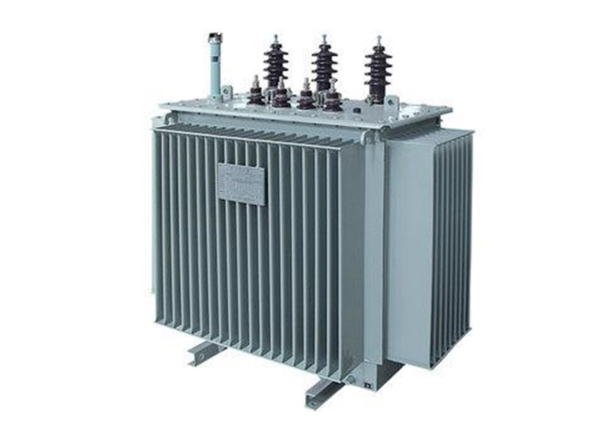

The S13 Series 10kV oil-immersed transformers provide long service life and maintenance-free performance. The fully sealed structure connects the tank cover and tank rim via bolts or welding, isolating the insulating oil from air and preventing moisture absorption of insulation. This greatly slows down insulation aging and extends service life.
The product features a compact design and low operating noise. With new materials and advanced processes, noise is effectively reduced. The conservator-free design makes the overall height lower than similar products. No oil replacement is required during its normal service life, improving the safety and reliability of grid operation.
Transformers are core equipment in power grid construction. With emerging industrial demands, developing energy-saving, low-noise, and intelligent distribution transformers has become an inevitable trend. The S13 Series 10kV oil-immersed transformers designed and manufactured by our company adopt a fully sealed corrugated tank structure, featuring maintenance-free operation, easy servicing, stable performance, and remarkable economic benefits.
| Frequency | 50 Hz,60 Hz | Input Voltage | 35 kV,11 kV,10 kV,33kv,20kv |
| Output Voltage | 110 V,220 V,380 V,400 V,415 V,11 kV | Phase | three-phase |
| Place of Origin | Zhejiang,China | Model Number | S11 |
| Brand Name | Deyan | Coil Number | 3 |
| Coil Structure | oval | Application | voltage transformation |
| product name | Oil immersed transformer | model | s11 |
| type | oil-immersed | Cooling method | ONAN |
| customized | Customize color logo packaging according to requirements |
It features low loss, low noise, fully sealed corrugated tank, conservator-free, maintenance-free, long service life, high reliability and remarkable energy-saving benefits.
Optimized copper windings with strong short-circuit resistance; firm core & winding structure; vacuum drying and oil treatment; fully sealed corrugated tank to isolate moisture and oxidation.
Standard pressure relief valve. Units of 800kVA and above are equipped with temperature controller and gas relay for over-temperature and Buchholz protection.
Standard capacity: 100kVA–1000kVA. Custom capacities are available.
No. The corrugated tank replaces the conservator to compensate oil volume change.
Yes. Fully sealed structure isolates oil from air and moisture, slowing insulation aging.
Standard with high-quality copper windings; aluminum windings can be customized.
Yes. Firm structure, self-locking nuts and non-core-lifting design resist transport vibration.
Yes. Voltage ratio, vector group, protection and parameters can be customized.
Complies with IEC 60076, GB/T 1094 and other international standards.
Standard 1-year warranty; extended warranty support.
Lead time: 15–30 days. Packed in fumigated wooden cases for safe transport.
Yes, we can customize according to your drawing, requirements, we have 20+ years experiences team to satisfy your needs.
We have SF6 switchgear, solid insulated switchgear, ring main cabinets, and environmentally friendly gas insulated cabinets, they cover all the ranges you need.
Our product shell is made of high-strength materials to ensure firmness and sealing. During transportation, we use smoked wooden boxes to protect and ensure product safety.
We will provide you with English version operation manuals and drawings, and provide you with professional technical advice when you need.
