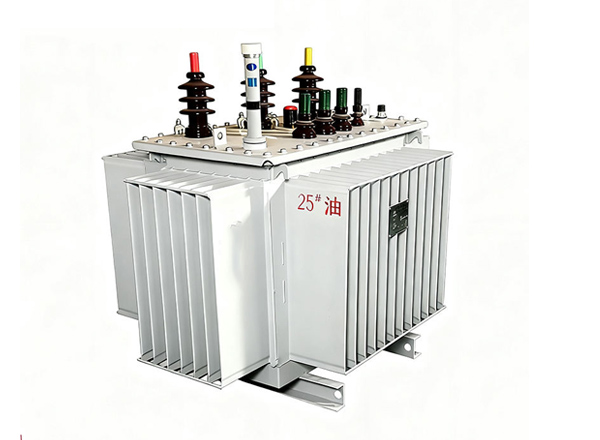

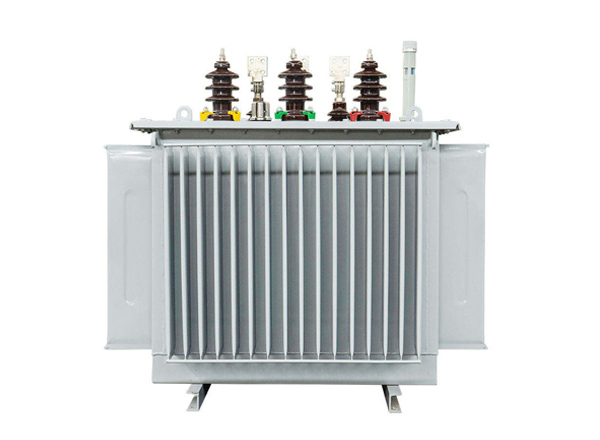

S22 10KV Oil Immersed Transformer

S22 10KV Oil Immersed Transformer is a new power distribution instrument that given the work into a lesser cost and to a great extent efficiency current has an enhanced structure, undoubtedly is made with high-classiness materials and is tailored for a reliable work.

GET IN TOUCH Send Email

Share With:

Overview

parameter

feature

case

FAQ

inquiry

GET IN TOUCH

PRODUCT OVERVIEW

The S22 10KV Oil Immersed Transformer is the newest model of energy-saving distribution transformer; it is adopted to satisfy the demands from modern power grids for distribution transformers. It has better core material and winding design which causes considerable reductions of no-load and load loss.

This type of transformer is with fully closed oil tank, so reducing the oil oxidation and moisture intrusion effectively, maintaining long service life, and reducing maintenance. With high-grade silicon steel and reasonable design of magnetic circuit, ensuring that work freely low noise.

The S22 transformer has efficient heat dissipation performance, so it can work steadily in a heavy load. It is used extensively in city power supply, factory (industry), infrastructure and other fields of renewable energy.

The S22 10KV Oil Filled Transformer is designed internationally accepted standards, high reliability, safety, environmental adaptability. It can be used in modern power distribution system.

PRODUCT PARAMETERS

Product Model	Rated Capacity (kVA)	Vector Group Symbol	HV Voltage (kV)	Tap Range	LV Voltage (kV)	No-load Loss (W)	Load Loss (W at 75℃)	No-load Current (%)	Short-circuit Impedance (%)
S22	30	Dyn11	10	±2×2.5%	0.4	65	455	1.2	4
S22	50					80	655	1.04
S22	63					90	785	0.96
S22	80					105	945	0.96
S22	100					120	1140	0.88
S22	125					135	1360	0.88
S22	160					160	1665	0.8
S22	200					190	1970	0.8
S22	250					230	2300	0.72
S22	315					270	2760	0.72
S22	400					330	3250	0.64
S22	500					385	3900	0.64
S22	630					460	4460	0.48	4.5
S22	800					560	5400	0.48
S22	1000					665	7415	0.48
S22	1250					780	8640	0.4
S22	1600					940	10440	0.4
S22	2000					1085	13180	0.32	5
S22	2500					1280	15270	0.32	5

Product Feature

Ultra-Low Energy Loss

Since the S22 transformer is fabricated with state-of-the-art core material and using the most optimized magnetic design, no-load losses and load losses are minimized to a great extent, so the users can save considerably in terms of energy consumption and other running costs in a long run.

Superior Thermal Performance

Transformer has effective system of circulation and heat dissipation in oil so that the transformer can run under continuous middle heavy load situation and keep stabilized temperature for long time period.

Fully Sealed Structure

Uses a hermetically sealed oil tank, which means that no moisture or air can access the oil, significantly extends the life of the transformer oil as there is no deterioration of the oil and therefore no maintenance or oil change is ever required.

Low Noise Operation

Optimized core design and manufacturing can greatly reduce the vibration and electromagnetic noise, suitable for urban and commercial areas.

High Reliability & Safety

With the best possible insulating materials and strict quality control over the manufacturing processes, the S22 transformer provides high electrical strength, short-circuit strength and security for a long-lasting working life.

Wide Application Adaptability

This is a multi-voltage unit that is designed for operation in multiple environment and applications, ranging from power distribution in electric utility grids to electric power for industrial plants, including renewable energy projects, and infrastructure developments in various country scenarios.

Reliable Quality
Better Price

Reliable Quality to Avoid Risks, Better Price to Cut Costs, Faster Delivery to Seize Opportunities!
