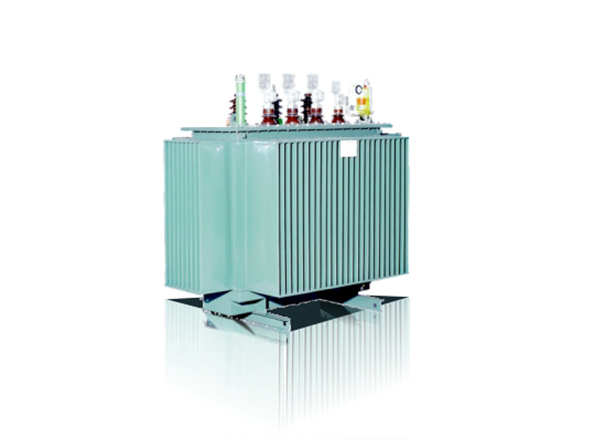

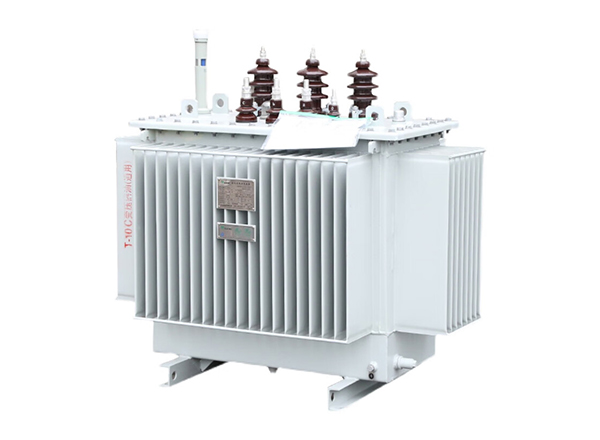

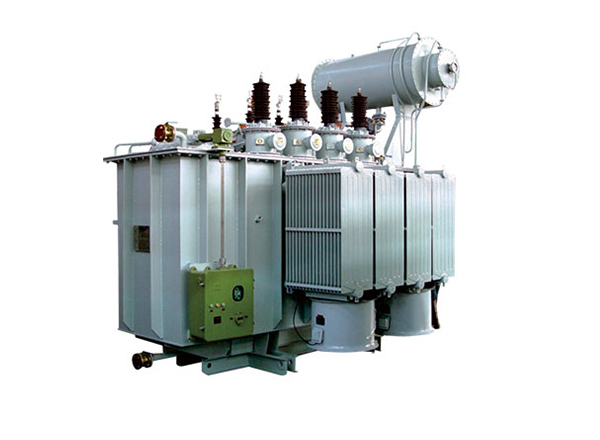

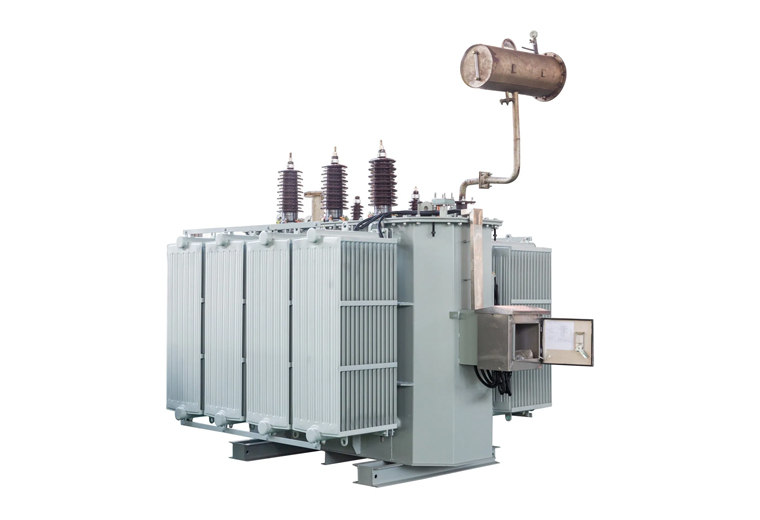

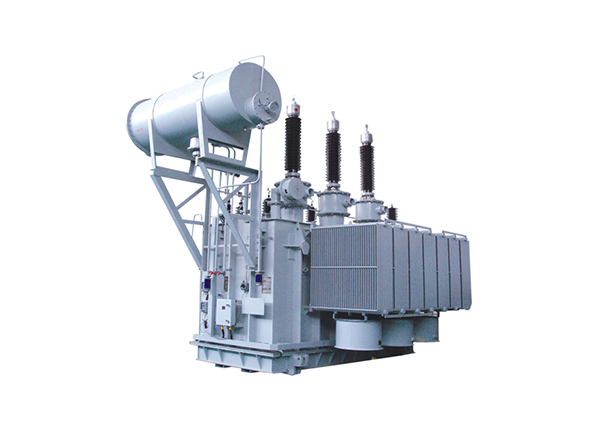

35kV oil‑immersed transformer covers 1000kVA–10000kVA and adopts environmental biodegradable vegetable oil as cooling and insulation medium. It features high efficiency, low loss, sealed corrugated tank, strong short‑circuit withstand and high safety. With eco-friendly, non-toxic and recyclable advantages, it effectively reduces fire risk and environmental pollution.
Adopting optimized core and winding design, the transformer runs stably with low noise and long service life. It is widely used in urban grids, industrial parks, hydropower stations, tunnels and other environmental‑sensitive power supply scenarios, providing safe and reliable power distribution for key projects.
| Product Model | Rated Capacity (kVA) | Vector Group Symbol | HV Voltage (kV) | Tap Range | LV Voltage (kV) | No-load Loss (W) | Load Loss (W at 75℃) | No-load Current (%) | Short-circuit Impedance (%) |
| SZ20 | 31500 | Yd11 | 35 | ±3×2.5% | 10.5 | 14200 | 104440 | 0.24 | 10 |
| SZ20 | 25000 | YNd11 | 35 | ±3×2.5% | 10.5 | 11100 | 84600 | 0.24 | 10 |
| SZ22 | 20000 | Dyn11 | 37 | ±3×2.5% | 10.5 | 8500 | 74400 | 0.28 | 8 |
We are a professional factory with 10 years experience in the field of High and low Voltage switchgears, Substation,transformers, cable distribution box and various electrical equipment.Our factory is the excellent supplier of State Grid Corporation od China.
We offer OEM/ODM service , can print your logo on product . our professional technical and quotation team can provice a satisfied satisfied project according to your drawing and parameters .
Our MOQ is 1 piece.
It depends on your product requirement and quantity . Generally , 5~10 working days is avaliable .
Please porvide detailed photoes of quality problems. our technical and quality testing department will analyse.we will make a satisfied soluton within 2 days .
30%T/T in adcance,70% before shipment . West union,L/C are also acceptable .
We strictly follow IEC, GB, ANSI and other international standards, and all products pass complete routine and type tests before delivery.
Yes, we provide lifelong technical consultation, operation guidance, and professional after-sales service to ensure stable operation.
Sure, we can provide test reports, quality certificates, ISO certificates and other required documents.
We provide a 1-year standard warranty, and we also support extended warranty for long-term projects.
All products are packed with fumigated wooden cases or strong steel brackets to ensure safe long-distance transportation.
Yes, we provide one-stop solutions including transformers, switchgears, substations and supporting electrical equipment.
