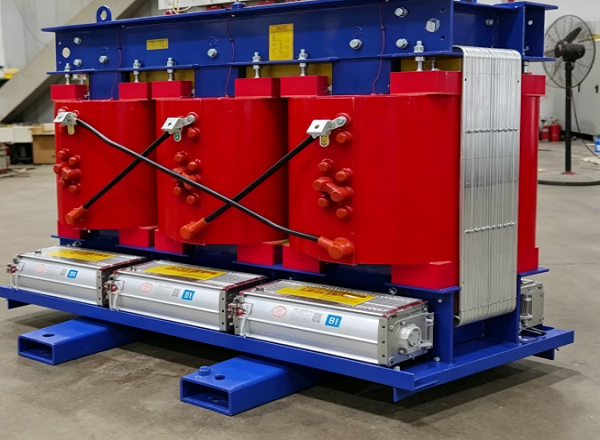

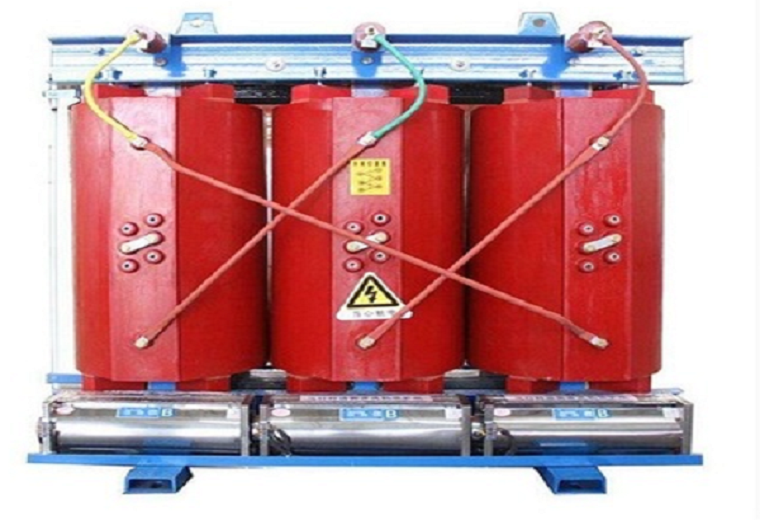

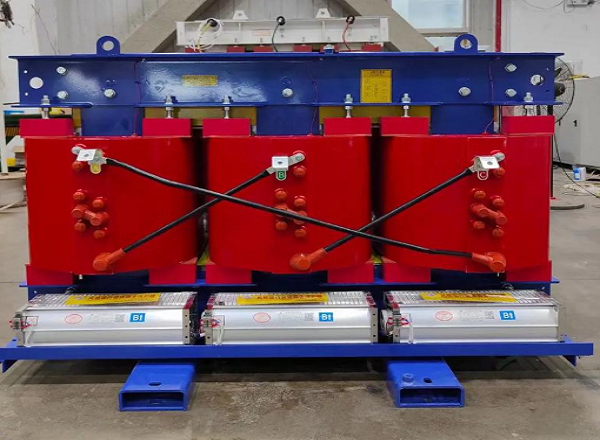

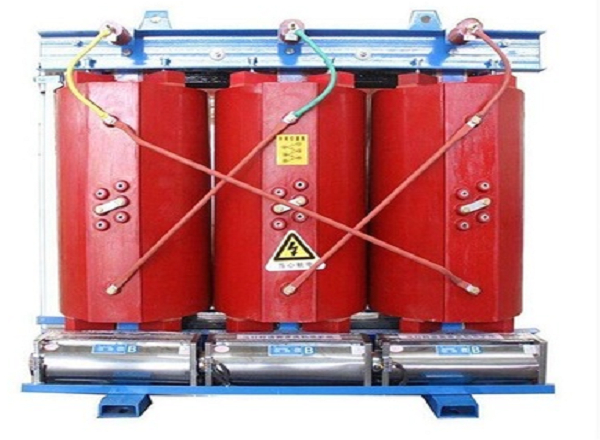

Jinma SC (B) H15-M amorphous alloy dry-type transformer, is for the green low-carbon power distribution needs of research and development of ultra-high-efficiency energy-saving power distribution equipment, the use of amorphous alloy core + epoxy resin full casting encapsulation + low-voltage foil winding + full sealing structure, set of ultra-low no-load loss, fire and explosion-proof, moisture and dust, free of maintenance, and other advantages, is the traditional silicon steel dry-type transformer of the revolution of upgrading alternative products. It is a revolutionary upgraded alternative to the traditional silicon steel sheet dry-type transformer.
Product focuses on the ultimate energy saving, full working condition reliable two core advantages, no-load loss compared with the traditional silicon steel sheet transformer to reduce 60% -70%, long-term operation of energy-saving benefits. Full casting sealing structure effectively isolate dust, water vapor and corrosion, anti-environmental interference ability. The product conforms to the national energy efficiency and environmental protection standards, oil-free and pollution-free, suitable for the global green power construction needs. Widely used in residential neighborhoods, industrial parks and other indoor power distribution scenarios with high requirements for energy saving and reliability, with strong market demand.
| Model No. | Rated Capacity (kVA) | Vector Group | HV Voltage (kV) | Tap Range | LV Voltage (kV) | No-load Loss (W) | Load Loss (W) @ 120℃ (F) | No-load Current (%) | Short-circuit Impedance (%) |
| SCH15-30 | 30 | Dyn11 | 6/6.3/6.6/10/10.5/11 | ±5% / ±2×2.5% | 0.4 | 70 | 710 | 0.6 | 4 |
| SCH15-50 | 50 | 0.4 | 90 | 1000 | 0.5 | ||||
| SCH15-80 | 80 | 0.4 | 120 | 1380 | 0.5 | ||||
| SCH15-100 | 100 | 0.4 | 130 | 1570 | 0.5 | ||||
| SCH15-125 | 125 | 0.4 | 150 | 1850 | 0.4 | ||||
| SCH15-160 | 160 | 0.4 | 170 | 2130 | 0.4 | ||||
| SCH15-200 | 200 | 0.4 | 200 | 2530 | 0.4 | ||||
| SCH(B)15-250 | 250 | 0.4 | 230 | 2760 | 0.4 | ||||
| SCH(B)15-315 | 315 | 0.4 | 280 | 3470 | 0.3 | ||||
| SCH(B)15-400 | 400 | 0.4 | 310 | 3990 | 0.3 | ||||
| SCH(B)15-500 | 500 | 0.4 | 360 | 4880 | 0.3 | ||||
| SCH(B)15-630 | 630 | 0.4 | 420 | 5880 | 0.3 | ||||
| SCH(B)15-630 | 630 | 0.4 | 410 | 5960 | 0.3 | 6 | |||
| SCH(B)15-800 | 800 | 0.4 | 480 | 6960 | 0.3 | ||||
| SCH(B)15-1000 | 1000 | 0.4 | 550 | 8130 | 0.2 | ||||
| SCH(B)15-1250 | 1250 | 0.4 | 650 | 9690 | 0.2 | ||||
| SCH(B)15-1600 | 1600 | 0.4 | 760 | 11700 | 0.2 | ||||
| SCH(B)15-2000 | 2000 | 0.4 | 1000 | 14400 | 0.2 | ||||
| SCH(B)15-2500 | 2500 | 0.4 | 1200 | 17100 | 0.2 | ||||
| SCH(B)15-1600 | 1600 | 0.4 | 760 | 12900 | 0.2 | 8 | |||
| SCH(B)15-2000 | 2000 | 0.4 | 1000 | 15900 | 0.2 | ||||
| SCH(B)15-2500 | 2500 | 0.4 | 1200 | 18800 | 0.2 |
Core for amorphous alloy core ultra-low loss technology and epoxy resin full casting full sealing structure, energy saving effect is remarkable, anti-environmental interference ability is strong, is the first choice of green low-carbon power distribution equipment.
Mainly suitable for residential areas, industrial parks, data centers, commercial complexes, hospitals/schools/public buildings and other indoor power distribution scenarios that require high energy efficiency and reliability.
Yes, product implements GB 20052-2020 super-class energy-efficiency standards, is currently one of the highest energy-efficiency dry-type transformer series, can enjoy the national energy-saving subsidies.
SC (B) H15-M amorphous alloy dry-type transformer no-load loss is reduced by 60% -70%, the whole life cycle of power-saving benefits; full casting sealed structure moisture-proof and dust-proof, anti-short-circuit capability is stronger; oil-free design is safer, maintenance-free cycle is longer.
Yes, according to the project requirements, we can customize the rated capacity, short-circuit impedance, protection level, cooling mode, intelligent function module, to adapt to different scenarios of personalized power distribution needs.
Compact equipment, modular design, easy installation, short construction period; oil-free sealing structure to achieve a long period of maintenance-free, significantly reducing the difficulty and cost of operation and maintenance.
Jinma Electric has a large-scale production base, 15-20 days after the signing of the contract for standard models to complete the production testing and shipment; customized models according to the complexity of the parameters, the delivery cycle of 25-35 days, the whole process of follow-up to ensure delivery.
