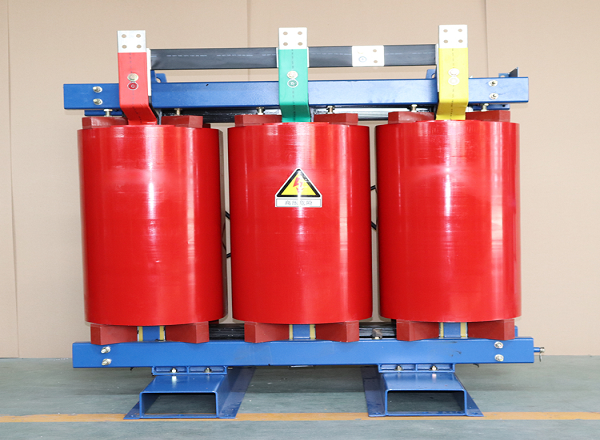

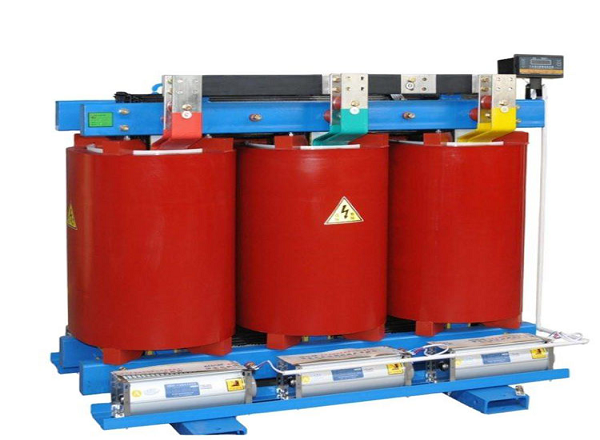

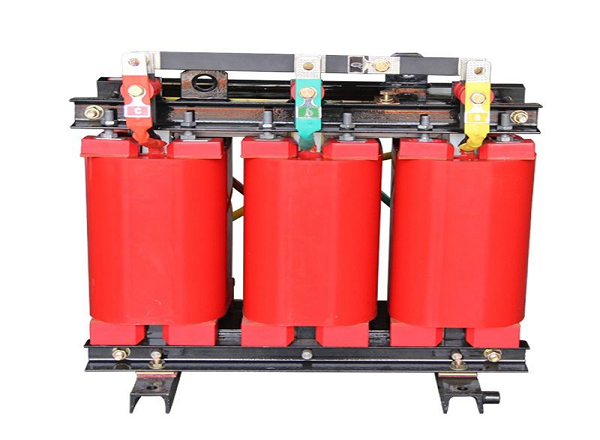

Transformer adopts epoxy resin casting process, with high insulation grade, fire and moisture resistance, and can run stably in harsh environment, widely used in power stations, industrial plants, commercial buildings and other scenes, adapting to different voltage standards around the world, and meeting the needs of Europe, the United States, Southeast Asia and other international markets.
Core function focuses on the efficient conversion and stable transmission of electric energy, effectively reducing power loss and improving power supply efficiency, and at the same time, it has good short-circuit resistance and thermal stability, which can be operated safely for a long time and reduce the maintenance cost later on, and meets the demand for energy-saving transformers in the international market.
As the main products of foreign trade export, its design strictly follows the international electrical standards, through a number of international certifications, the size and installation method to adapt to the installation norms of most countries around the world, can be customized according to the needs of customers in different countries, help Jinma to expand the global transformer market.
| Model No. | Rated Capacity (kVA) | HV Voltage (kV) | Tap Range | LV Voltage (kV) | No-load Loss (W) | Load Loss (W) | No-load Current (%) | Short-circuit Impedance (%) | ||
| B(100℃) | F(120℃) | H(145℃) | ||||||||
| SC11-800 | 800 | 35/36/37/38.5 | ±2×2.5% / ±5% | 3.15/6/6.3/10/10.5/11 | 2020 | 8870 | 9400 | 10000 | 0.85 | 6 |
| SC11-1000 | 1000 | 2400 | 10300 | 10900 | 11600 | 0.85 | ||||
| SC11-1250 | 1250 | 2810 | 12100 | 12900 | 13800 | 0.75 | ||||
| SC11-1600 | 1600 | 3320 | 14600 | 15400 | 16500 | 0.75 | ||||
| SC11-2000 | 2000 | 3800 | 17200 | 18200 | 19500 | 0.65 | 7 | |||
| SC11-2500 | 2500 | 4370 | 20600 | 21800 | 23300 | 0.65 | ||||
| SC11-3150 | 3150 | 5420 | 23100 | 24500 | 26200 | 0.6 | ||||
| SC11-4000 | 4000 | 6310 | 27700 | 29400 | 31500 | 0.6 | 8 | |||
| SC11-5000 | 5000 | 7530 | 32900 | 34900 | 37400 | 0.55 | ||||
| SC11-6300 | 6300 | 8910 | 38500 | 40800 | 43700 | 0.55 | ||||
| SC11-8000 | 8000 | 6/6.3/10/10.5/11 | 10100 | 43400 | 46000 | 49300 | 0.45 | 9 | ||
| SC11-10000 | 10000 | 11600 | 52400 | 55500 | 59400 | 0.45 | ||||
| SC11-12500 | 12500 | 14100 | 60900 | 64600 | 69100 | 0.35 | ||||
| SC11-16000 | 16000 | 17300 | 71700 | 76000 | 81300 | 0.35 | ||||
| SC11-20000 | 20000 | 20600 | 80600 | 85500 | 91500 | 0.3 | 10 | |||
| SC11-25000 | 25000 | 24300 | 95300 | 101000 | 108000 | 0.3 | ||||
Jinma Electric selects cooperative factories through strict qualification audit, including factory production capacity, quality management system, international certification qualification and after-sales service ability, all cooperative factories need to meet the quality standards of Jinma Electric’s foreign trade exports, and after regular inspection to ensure that the products meet the requirements of the international market.
Yes, customers can visit Jinma’s factory. We warmly welcome global customers to visit our transformer production workshop to understand the production process, quality inspection links and product manufacturing standards, and to enhance customer trust in product quality.
Compared with similar products, transformers of Jinma Electric have the advantages of higher energy efficiency, more stable insulation performance, more flexible customization, strict compliance with international standards, through a number of international certifications, and the price is more competitive, after-sales service system is perfect, and more popular in the international market.
Transformer parts are made of high-quality materials in line with international standards, including high-purity copper wire, high-grade epoxy resin, high-strength silicon steel sheet, etc. All the parts have passed international quality testing and fully comply with the requirements of foreign trade and export, which guarantees the overall quality and service life of the transformer.
Yes, the transformer has passed many international certifications such as IEC, CE, etc. It meets the market access standards of most countries and regions around the world, and can be exported to the international market smoothly.
Yes, Jinma Electric provides professional after-sales service for foreign trade customers, including technical guidance, maintenance support and supply of spare parts, equipped with a professional after-sales team to respond to customer needs in a timely manner to ensure the normal operation of the product.
Accepted, Jinma Electric can flexibly adjust the production plan according to the number of customer orders, to meet the diversified needs of foreign trade customers, and provide high quality products and services for small batch orders.
