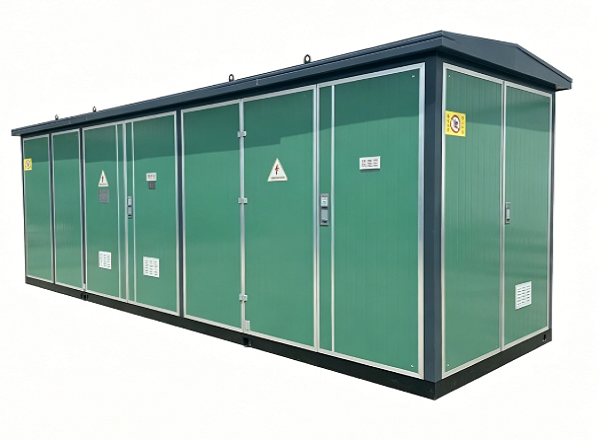

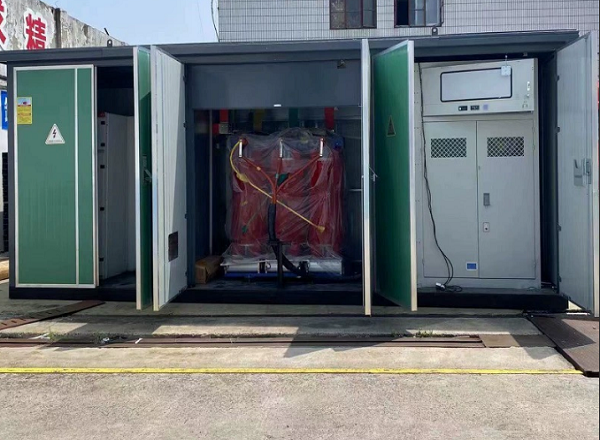

35kV European-style box-type medium-voltage high-end pre-assembled substation, covering a capacity of 1,000kVA-5,000kVA, adopts the independent modularized integrated design of high-voltage room, transformer room and low-voltage room, and built-in Golden Horse S13/S15 series of 35kV low-loss power transformers, which have the characteristics of large-capacity, high-overload and high-protection.
Whole process of the product follows the IEC international standards and EU regulations, and the insulation performance, safety protection and energy efficiency indexes are all in line with the first-tier brands in Europe. It can be directly connected to the European 35kV MV grid, and is widely used in the upgrading of substations in European cities, the distribution of power in large industrial bases, and the integration of PV/wind power into the grid and other scenarios.
| Item | Parameter |
| Rated Voltage | HV 35kV, LV 0.4kV/10kV (customizable) |
| Rated capacity | 1000kVA/1600kVA/2000kVA/2500kVA/3150kVA/4000kVA/5000kVA |
| Rated frequency | 50Hz/60Hz |
| Rated short-circuit breaking current | 20kA/25kA/31.5kA (customizable) |
| Protection grade | Enclosure IP54, can be customized IP55, meet the outdoor long-term operation |
| Cooling method | ONAN (oil-immersed self-cooling)/ONAF (oil-immersed air-cooling) |
| Applicable environment | Outdoor / Indoor, -30℃~+45℃, Altitude ≤3000m |
| Implementation standards | IEC 61330, IEC 60076, IEC 62271, EN 50588, CE, RoHS. |
| Core Features | IEC standardized design, 35kV high efficiency transformer integration, high capacity and high reliability, compatible with GIS switchgear. |
| Application scenario | Upgrading of substations in European cities, large-scale industrial power distribution, new energy grid connection, main power supply for commercial complexes |
Core is the full IEC standard design to adapt to the European power grid, integrated with Jinma 35kV high-efficiency power transformer, high capacity and high reliability, and can be supplied as a complete set with 35kV GIS switchgear, providing one-stop solutions.
35kV European-Style Box Substation High Efficiency For Substation is mainly suitable for the upgrading of 35kV city substations, power distribution of large industrial bases, grid connection of new energy from PV/wind power, main power supply of large commercial complexes, and other medium-voltage and high-end power distribution scenarios in Europe.
Yes, 35kV European-style box-type substation strictly complies with international standards such as IEC 61330 and IEC 60076, and has passed the CE and RoHS certificates of the European Union, which meets the requirements of European power grid access and environmental protection.
35kV European box-type substation adopts higher standard electrical design and material technology, integrates high-efficiency transformer with lower energy consumption, can be matched with GIS switchgear, and has better intelligent operation and maintenance functions, which is fully adapted to the high-end market demand in Europe.
Yes, Jinma Electric can customize the rated capacity, short-circuit breaking current, low-voltage output voltage, protection level, and also the intelligent monitoring module and the appearance of the color scheme according to the project requirements.
Factory pre-installation and commissioning is completed, only the foundation construction and cable access are required on site, so the installation is convenient and the construction period is short; the fully enclosed structure and remote monitoring function greatly reduce the difficulty and cost of overseas operation and maintenance.
Jinma Electric has a large-scale production base, 18-25 days after the signing of the contract for standard models to complete the production testing and shipment; customized models according to the complexity of the parameters, the delivery cycle of 30-40 days, the whole process of follow-up to ensure delivery.
