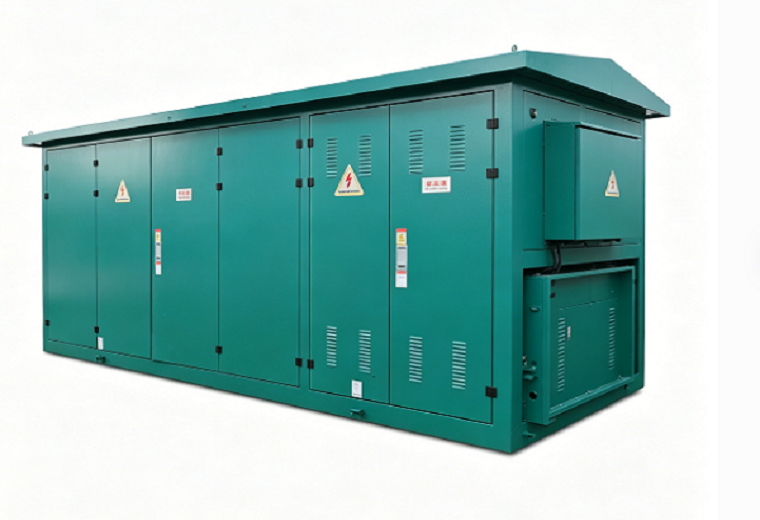

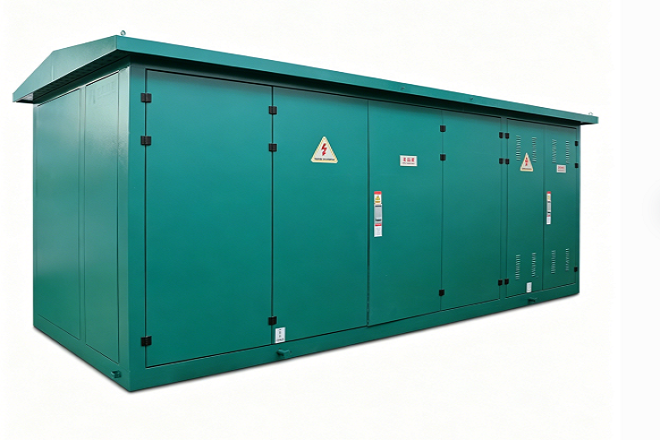

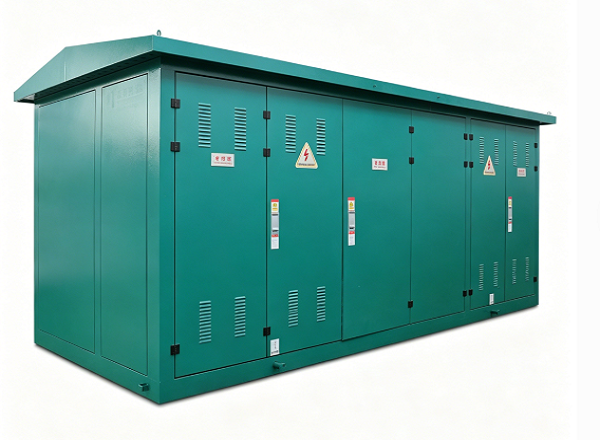

10kV Eurobox is the mainstream outdoor pre-installed substation in Europe, with capacity covering 100kVA-1000kVA. It adopts the independent modular integrated design of high-voltage room, transformer room and low-voltage room, and built-in S13 series low-loss oil-immersed transformer, which is matched with optimised noise-reducing structure and IP54 sealing protection system, to achieve low noise, high protection and high efficiency, Easily deployed integrated power distribution solution.
Strictly following IEC 61330, IEC 60076, EN 50588, EN 60529 and other EU and international standards, meeting CE, RoHS environmental requirements, insulation and safety performance against the European first-line brands, can be directly used in the EU market and domestic high-end commercial and residential parks projects.
| sports event | parameters |
| Rated Voltage | High voltage 10kV, low voltage 0.4kV |
| Rated capacity | 100kVA/200kVA/315kVA/400kVA/500kVA/630kVA/800kVA/1000kVA |
| Rated frequency | 50Hz/60Hz (Customizable) |
| protection class
| Enclosure IP54, dust-proof, splash-proof, meet outdoor long-term operation |
| noise level | Empty load noise ≤ 50-55dB, full load ≤ 58dB, far better than the residential night limit value |
| Transformer Model | S13 Series Low Loss Oil-immersed Transformers |
| Cooling method | ONAN (oil immersion self-cooling) |
| Applicable environment | Outdoor/indoor, -25℃～+45℃, altitude≤3000m |
| Implementation standards | IEC 61330, IEC 60076, GB/T 17467, EU CE, RoHS, EN 50588. |
| Core Highlights | Low Noise, IP54 High Protection, S13 Energy Efficient, European Mainstream Specification |
| Typical Scenarios | Urban residential areas, commercial complexes, industrial parks, schools and hospitals, municipal public power distribution, overseas Europe and the standardized EU market |
With Low Noise and IP54 protection as the core, integrated with S13 high-efficiency oil-immersed transformer, European mainstream specifications, compliant with EU standards, especially suitable for residential areas, business parks and European ancient building protection zones, wind power support and other scenarios with high requirements for quietness and environment.
No-load ≤ 50-55dB, full load ≤ 58dB, better than the EU residential night environment standards, quiet operation does not disturb the people.
Completely dust-proof, splash-proof in any direction, outdoor long-term operation, adapt to Europe’s rainy, humid, coastal salt spray and other complex environments.
Yes, it meets the requirements of IEC/EN standards, CE, RoHS, energy efficiency EN 50588 and EU Energy Efficiency Directive 2023/1234, and can be exported to Europe directly.
Yes, S13 series low loss oil-immersed transformers are standard, energy efficient, low temperature rise, long life, and comply with EU Ecodesign energy efficiency requirements.
Capacity of 100kVA-1000kVA is fully covered and can be customized; the lead time is about 20-25 days for standard models and 30-40 days for customized models, and the European orders are supported by the rapid delivery of China-Europe liner.
Factory pre-installed, on-site lifting and wiring can be put into operation; support for remote monitoring and fault warning, fully enclosed IP54 structure with low failure rate, easy operation and maintenance, suitable for European remote operation and maintenance needs.
