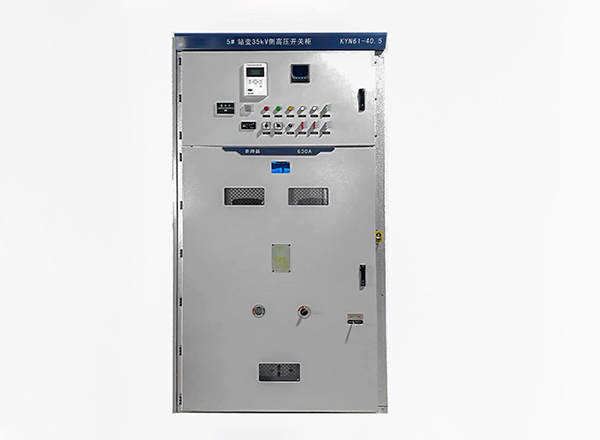

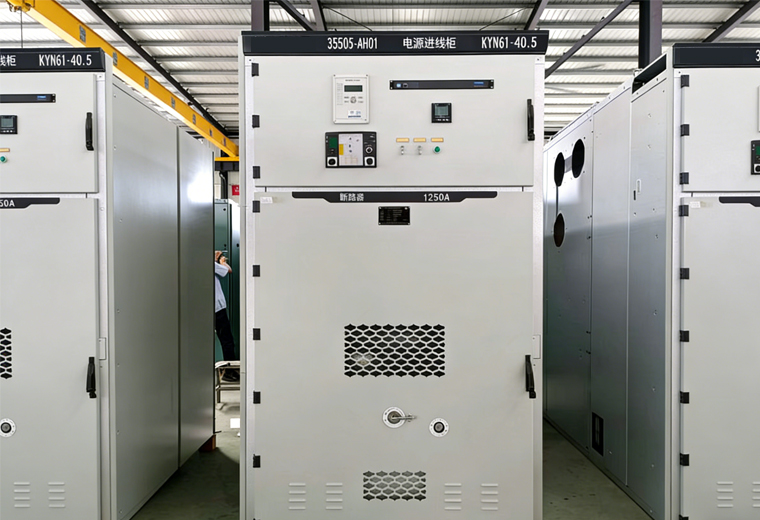

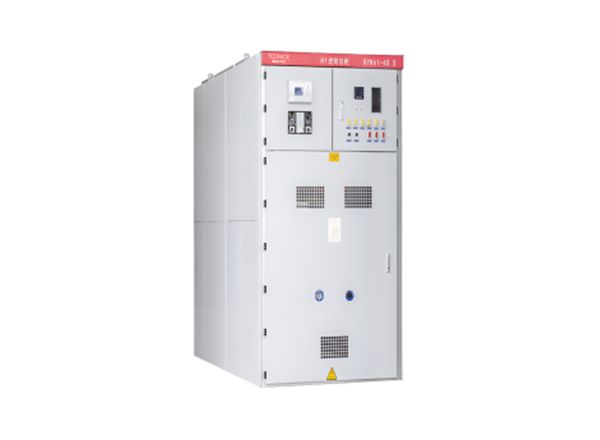

KYN61-40.5 type armored move-open type AC metal-enclosed switchgear is the star high-end product of Jinma Electric, specially designed for 35kV high-voltage power distribution scenario, which is the “distribution hub” of the large-scale electric power system, and bears the core task of power distribution, control and protection.

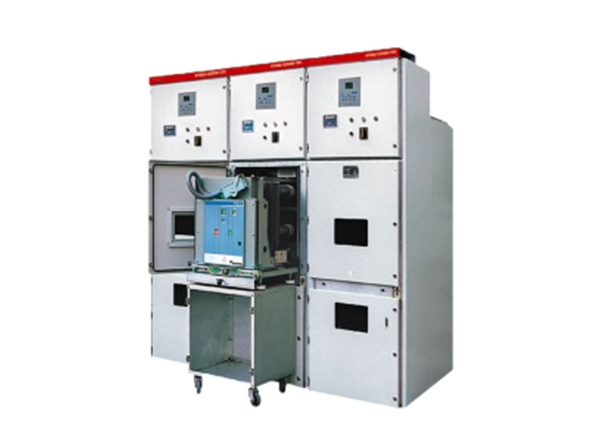

The product adopts fully enclosed armored structure, full of safety performance, can effectively isolate the internal fault, to eliminate potential safety hazards; modular move-open design, easy maintenance, low operation and maintenance costs; core components are used in the first-line brands, to protect the equipment in the complex working conditions of stable operation. The products can be perfectly adapted to the full series of 35kV power transformers of Jinma Electric, one-stop solution for customers from voltage conversion to the whole process of power distribution control needs, widely used in power plants, large substations, large industrial and mining enterprises, new energy power stations and other scenes, batch exported to the Middle East, Europe and other global high-end markets, is the first choice of brand for overseas power projects.
| Rated Voltage | 40.5kV (35kV Medium Voltage Class) |
| Rated Current | 630A / 1250A / 1600A / 2000A (Customizable) |
| Rated Frequency | 50Hz / 60Hz |
| Rated Short-circuit Breaking Current | 25kA / 31.5kA / 40kA (Customizable) |
| Rated Peak Withstand Current | 63kA / 80kA / 100kA |
| Protection Degree | Enclosure IP4X, Compartment IP2X |
| Operation Mode | Motorized Operation / Manual Operation (Optional) |
| Applicable Environment | Indoor, -25℃ ~ +40℃, Altitude ≤ 2000m (High Altitude / High Temperature / High Humidity Customizable) |
| Applicable Standards | IEC 62271-200, GB 3906, CE Certified |
| Compatible Equipment | Jinma Electric Series 35kV Power Transformers |
| Application Scenarios | Power Plants, Large Substations, Overseas Power Infrastructure, High-voltage Power Distribution for Industrial and Mining Enterprises |
It is mainly suitable for power plants, large substations and other 35kV medium-voltage power core scenarios.
It can be directly linked with Jinma’s 35kV power transformer to form an integrated power solution.
The core advantage is high stability, reliable structure, safe operation, suitable for long-term continuous operation of important power projects.
Mainly exported to the Middle East, Europe and other overseas high-end power markets.
Jinma Electric specializes in the supply of industrial power equipment for the whole industry chain, and its core products include 35kV-110kV power transformers, KYN61-40.5 series of high-voltage switchgear, and ancillary equipment for metallurgical furnaces. We not only provide high-quality single equipment, but also committed to provide “transformer + switchgear” integrated one-stop power solutions for power plants, substations, and new energy projects, covering a variety of fields, such as power transmission, metallurgical production and new energy.
Yes, KYN61-40.5 switchgear strictly follows the IEC 62271-200 international standard and GB 3906 national standard, and is fully equipped with CE certification and relevant test reports. The product quality fully meets the access requirements of the Middle East, Europe and other high-end markets, with convenient customs clearance and worry-free project acceptance, which is the preferred quality brand for exporting overseas.
Jinma Electric has a modernized large-scale production base with sufficient inventory.
Standard models: regular specifications can be completed and shipped within 15-20 days after the contract is signed.
Customized models: According to the complexity of the customized parameters, the lead time is 25-35 days.
We are committed to follow up the whole process to ensure that large orders are delivered on time, so as to ensure that the progress of your project will not be affected.
