Floor-standing transformers are the core equipment of modern underground power distribution systems. They are different from traditional pole transformers. The equipment is installed on a concrete base and equipped with an anti-theft airtight steel box, which is specially built for underground transmission lines.
It can step-down 4-35kV medium voltage into civil 120/240V, commercial and industrial 208/480V low voltage electricity, and is widely used in urban power grids, residential communities, commercial and industrial parks and other scenarios to stably ensure terminal power supply.
With its unique structural design, strict process standards and comprehensive performance advantages, floor-standing transformers have gradually replaced traditional power distribution equipment and become the first choice for modern power distribution projects.This article will analyze in detail the seven core advantages of floor-standing transformers, and take you to a comprehensive understanding of the core reasons for their adaptation to various high-end distribution scenarios.
What Is a Pad-Mounted Transformer?

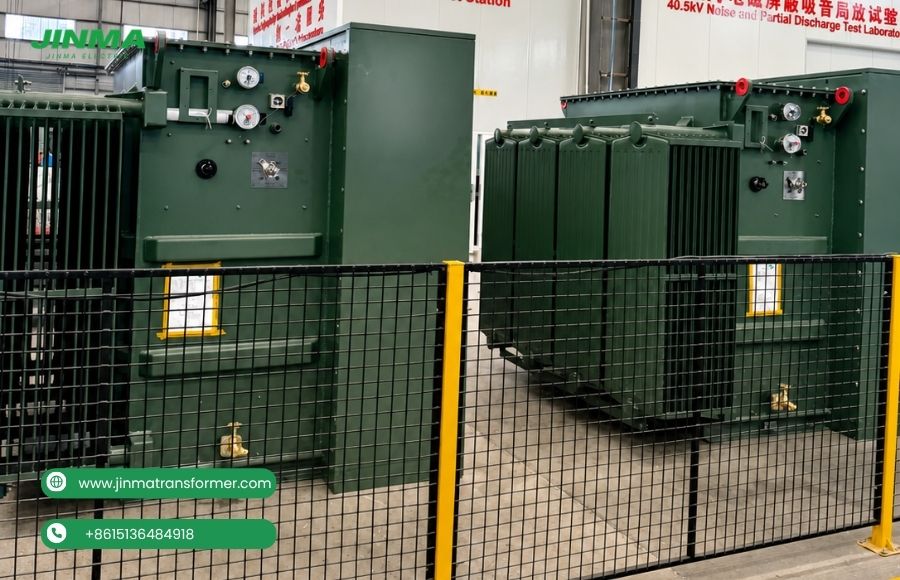

Box-type floor-standing transformer (referred to as floor-standing transformer) is a floor-mounted distribution transformer, which is encapsulated in an anti-theft and lockable steel shell as a whole, and is fixed and installed on a concrete base. It is mainly used for underground distribution lines.
The equipment is mainly used for power distribution step-down, and can convert the medium voltage of 4-35 kV to the low voltage of the client. 120/240 volts are commonly used in civil scenarios, and 208/480 volts are used in industrial and commercial scenarios. It is the key equipment for power distribution at the terminal of the power grid.
Core features
Fully enclosed structure: The live parts of the whole machine are fully enclosed in a grounded metal shell, using a non-exposed live front structure and elbow-shaped connectors, without protective fences, and can be directly deployed in public and residential areas. The bottom of the cable enters the line, and the safety and cleanliness are excellent.
- Insulated oil-immersed structure: Mineral oil or FR3 environmentally friendly insulated oil-immersed design is used to take into account insulation and heat dissipation. The iron core winding is placed in a steel oil tank, and the high and low voltage wiring is locked independently. It is a special outdoor weather-resistant structure.
- The main parameters are wide and the functions are integrated: the conventional capacity is 15-5000 kVA, which supports expansion and customization; the fuselage integrates fuses, switches, and load breaking devices, which can realize live operation through insulated operating rods to ensure the continuity of power supply.
- Suitable for multi-specification adaptation: it is divided into single-phase and three-phase types, which are suitable for high-power loads in civil housing and industry and commerce respectively; it supports radiated single-channel in-line and ring-network dual-channel in-line, and the ring-network structure can effectively improve the reliability and flexibility of power supply in the power grid.
Benefit 1: Enhanced Safety with Tamper-Resistant Design
Safety is one of the core advantages of floor-standing transformers. It adopts a fully enclosed and tamper-proof integrated structure design to avoid safety risks such as electric shock, external damage, and illegal intervention from the root cause, and is perfectly adapted to densely populated public scenes.
The safety advantages of floor-standing transformers are derived from the scientific structural design and all-round protection configuration, which eliminates all kinds of electrical safety hazards from the hardware level, and can be divided into two major sectors.：
Closed safety structure design
All live parts of the equipment and high and low voltage wiring ports are enclosed in a grounded thickened steel locking box, using the industry’s mainstream non-exposed live front-end structure, with insulated elbow connectors, completely eliminate exposed live points, and fundamentally solve the hidden dangers of electric shock in traditional open transformers.
At the same time, the partition layout of the high and low voltage cavity is adopted to physically isolate the core components of the medium voltage from the low voltage power distribution system. Only licensed professional operation and maintenance personnel can unlock the operation, greatly avoiding safety accidents caused by human misoperation.The equipment adopts the design of the bottom cable entry line, which effectively avoids the safety risks caused by human touch, debris blocking, and wind and rain erosion.
Multiple intelligent protection configurations
The equipment has a full set of protective accessories such as fuses, pressure release devices, and surge protectors, which can quickly respond to sudden working conditions such as lightning strikes, voltage surges, and internal failures to ensure the stable operation of the power grid.
The box is equipped with a special lock for anti-prying and anti-theft, which can resist malicious prying and man-made damage, and has a strong anti-interference ability.Relying on a sound safety design, the equipment does not need to build additional protective fences, and can be directly and safely deployed in densely populated public areas such as residential areas, schools, parks, and business districts, greatly reducing the incidence of equipment damage and electric shock accidents.
Benefit 2: Improved Aesthetics
Traditional pole transformers with lined poles and overhead cables are not only visually messy, but also destroy the overall landscape of the area. With its low and simple integrated design, floor-standing transformers perfectly solve the conflict between power distribution equipment and environmental aesthetics, and adapt to the needs of modern urban construction and landscape parks.
- The appearance is simple and low-key: the floor-standing transformer adopts a low-profile and compact box design, and comes standard with neutral and versatile coatings such as green, which can be naturally integrated into the surrounding environment of greenery, streets, and buildings, without any sense of visual obtrusiveness.The equipment is equipped with underground cable layout, completely abandoning traditional telegraph poles and overhead messy lines, effectively combing the skyline of the neighborhood, and greatly improving the overall cleanliness and landscape texture of the park and urban area.
- Multi-scene non-inductive adaptation: The equipment has strong landscape compatibility, and can be safely and concealedly installed in high-end residential areas, historical districts, municipal parks, commercial complexes, campuses and other areas with strict environmental requirements.While stabilizing the output of power distribution functions, it does not destroy the overall aesthetic layout of the area, helps the landscape power project to land, effectively enhances the environmental quality and real estate value of the area, and adapts to the needs of modern urban renewal and power distribution transformation.
Benefit 3: Improved Space Efficiency
At the moment when urban land resources are tight and the layout of the park is refined, the high space utilization advantage of floor-standing transformers is particularly prominent, which perfectly solves the pain points of traditional power distribution equipment that occupies a large area and is difficult to locate.
- Compact footprint: The equipment occupies a compact footprint and can be installed on a small concrete base, which is usually 1.5‑3 meters square.No need for poles, cables, fences and large power distribution rooms.The fully enclosed safety protection structure can be directly deployed in scattered and small areas such as green belts, corners of parking lots, surrounding buildings, and sub-zones in residential areas, without the need to reserve a large area of exclusive power distribution land.
- High equipment utilization rate: A single floor-standing transformer can cover multi-family homes, entire commercial buildings or entire small parks, effectively reducing the overall layout of power distribution equipment, streamlining the layout of power distribution, and further saving land resources and distribution channel space.
- Maximize space utilization: match the underground cable laying method to completely free up the space above, say goodbye to the space occupied by traditional overhead equipment, greatly improve the land use efficiency of urban areas and parks, and perfectly adapt to the power distribution layout needs of high-density urban areas and refined parks.
Benefit 4: Reliable Performance in Harsh Outdoor Environments
The floor-standing transformer is specially designed for outdoor all-weather working conditions. It adopts a high-strength sealing structure and durable materials. It can withstand all kinds of extreme outdoor environments and achieve long-term stable operation. It is suitable for coastal, cold, high temperature, windy and sandy areas with complex working conditions.
- High-efficiency insulation and heat dissipation: The iron core and winding of the equipment are sealed in a steel oil-immersed fuel tank, using mineral oil or environmentally friendly FR3 coolant, which has both high-quality insulation and heat dissipation properties.Relying on the dual heat dissipation modes of natural convection and forced air cooling, it can adapt to environments with large temperature differences such as extreme cold and high temperature, and always maintain the stable operating temperature of the equipment.
- Anti-corrosion and anti-aging: The external steel box of the equipment is equipped with a special coating for anti-corrosion and anti-UV, which can effectively resist natural erosion such as rain, snow, freezing, and sand, and eliminate shell corrosion, aging, and pulverization problems. It can be stably adapted to complex outdoor scenes such as coastal salt spray and industrial dust pollution.
The equipment as a whole adopts a sealed, waterproof and dustproof design, and the entry of rainwater, mosquitoes, and impurities is blocked by precision sealing strips and locking structures, and the bottom base is raised to avoid soaking in stagnant water.
At the same time, the fuselage structure has been reinforced to withstand high winds, minor impacts, and equipment vibration, and the internal accessories can withstand thermal expansion, cold shrinkage, and short-circuit shocks.With excellent outdoor adaptation capabilities, the equipment can operate stably for more than 30 years, with a very low failure rate, and it is perfectly adapted to all kinds of outdoor complex power distribution scenarios.
Benefit 5: Lower Maintenance Requirements
Compared with traditional pole transformers, floor-standing transformers adopt a fully sealed and protective design, with stable structure, low loss, few failures, and no need for frequent operation and maintenance, which can greatly reduce the long-term operation and maintenance costs and labor costs of power enterprises and park properties.
- Disadvantages of traditional transformers: the equipment is installed bare, and it is subject to long-term interference from wind, rain, sand, and external forces. It is prone to failure problems such as insulation aging, surface area fouling, and shell corrosion. High-frequency inspections, cleaning and maintenance are required, and the operation and maintenance workload is large.
- Advantages of floor-standing transformers: It adopts a fully sealed and enclosed structure, which can effectively isolate moisture, dust, and various pollutants, protect the internal iron core, winding, and insulating oil from clean and stable, significantly delay insulation aging, reduce equipment loss and failure points, and reduce operation and maintenance pressure from the root cause.
- Convenient and efficient operation and maintenance: The equipment is equipped with load switches and insulation elbows that can be operated with electricity. Operation and maintenance personnel can complete maintenance and replacement operations with the help of special tools. There is no need for power outages, high-altitude climbing poles and work vehicles to assist, making the operation safer and time-saving, and greatly reducing labor and equipment rental costs.
- Low operation and maintenance frequency and controllable cost: only basic work such as appearance inspection, leakage investigation, and grounding inspection are required daily, and large-scale maintenance cycles such as oil change and in-depth inspection are greatly extended.The overall operation and maintenance frequency is about 50% lower than that of traditional transformers, and the long-term operation and maintenance costs are lower.
Benefit 6: Flexible Installation for Different Applications
Floor-standing transformers have strong adaptability, rich model configurations and flexible installation methods, and can cover various power distribution scenarios such as civil, commercial, industrial, and new energy in all directions. They are extremely versatile power distribution equipment.
- Rich configuration selection: the equipment is divided into single-phase and three-phase models, with power covering 15kVA–5000kVA and above specifications.Among them, the single-phase models are suitable for light-load scenarios such as residential areas and small shops, and the three-phase high-power models can meet the electricity needs of high-power loads such as commercial complexes, industrial parks, data centers, and photovoltaic power plants. The selection covers a wide range.
- Dual power supply layout: it supports two wiring modes: radial single-loop and ring-network dual-loop.The radial structure is adapted to the basic simple power distribution scene, and the ring network structure can realize flexible line switching and rapid fault isolation, effectively avoiding the problem of large-area power outages, and greatly improving the stability and flexibility of the underground power grid.
- The installation process is simple: the equipment adopts a floor-standing installation structure, which does not require aerial work, and only needs to be fixed by pouring a concrete base or a prefabricated polymer base.With the layout of underground embedded cables, the wiring is neat and simple, the construction process is small, and the landing speed is fast, which greatly reduces the difficulty of construction and the cost of construction period.
- Flexible deployment: relying on a fully enclosed and non-exposed safety structure, the equipment location restrictions are extremely low, and it can be flexibly deployed in multiple scenarios such as residential areas, campuses, hospitals, industrial parks, new energy power stations, and urban renewal areas. It is not subject to site, environment, and format constraints, and its adaptability far exceeds that of traditional overhead power distribution equipment.
Benefit 7: High Energy Efficiency and Reduced Power losses
Modern floor-standing transformers strictly follow authoritative energy efficiency standards such as DOE and IEEE in the United States. They adopt low-loss iron cores and optimized winding designs. The energy efficiency is as high as 98.5%-99%, which can minimize power transmission losses and achieve energy saving, consumption reduction, cost reduction and efficiency enhancement.
- The main body has ultra-low loss and efficient operation under all operating conditions: the equipment adopts grain-oriented electrical steel or amorphous alloy low-loss iron core, which greatly reduces the no-load loss caused by hysteresis and eddy currents; with precision-arranged copper and aluminum windings, it effectively reduces the load operating loss, whether it is light load or full load conditions, it can maintain 98.5%-99% ultra-high energy efficiency, and the energy consumption performance is stable and excellent.
- Optimize the layout of the power grid and reduce system energy consumption: the equipment can be arranged close to the center of the power load, effectively shortening the laying distance of low-voltage cables and reducing line resistance losses.At the same time, the three-phase load balance can be optimized, the additional energy consumption caused by abnormal voltage can be avoided, and the overall power grid transmission loss can be reduced from the two dimensions of equipment and layout.
From the perspective of the whole life cycle cost, although the initial procurement and installation costs of equipment are slightly higher than that of traditional pole transformers, the long service life of 30-40 years, extremely low operation and maintenance costs, and continuous energy-saving benefits can quickly offset the initial investment.
At the same time, there are fewer equipment failures and low probability of power outages, which can effectively reduce power failure losses and equipment replacement costs. The overall cost of ownership is much lower than that of traditional power distribution equipment. It is a high-quality choice for power companies and park operators to reduce costs and increase efficiency.
Conclusion
With the seven core advantages of comprehensive safety protection, strong landscape adaptability, high space utilization, stable outdoor performance, low operation and maintenance costs, flexible installation and adaptation, and energy-saving and long-term economy, floor-standing transformers perfectly fit the development trend of modern power grids underground, landscape, intelligent, and energy-saving.
Whether it is an urban residential area, a business park, a campus hospital, an industrial park, or a new energy power station, this equipment can provide stable, safe, efficient, and long-lasting power distribution guarantee. It is the core preferred equipment for the current underground power distribution system.
