kVA vs kW Reading Industrial Stabilizer Ratings Correctly

When carrying out factory electrical upgrades, production line equipment expansions, or voltage stabilization projects for aging power grids, many procurement engineers and electrical managers face the same challenging problem: When selecting industrial voltage stabilizers based on the kW rating listed on equipment nameplates, the stabilizers frequently trip due to overloads and overheat after installation. In some cases, this even leads to premature failure of servo mechanisms and IGBT modules, directly causing unplanned production line shutdowns and the scrapping of workpieces, resulting in significant economic losses.

The root cause of these failures lies in the confusion between the two power units—kVA (kilovolt-amperes) and kW (kilowatts)—and the simplistic assumption that a device’s active power is equivalent to the voltage stabilizer’s rated capacity. This article provides a comprehensive guide on how to correctly interpret the rated parameters of industrial voltage stabilizers, covering fundamental definitions, power principles, common selection pitfalls, load classification, real-world factory case studies, and a procurement and acceptance checklist. It aims to help electrical teams make precise selections and avoid the risk of production stoppages caused by insufficient capacity.

What Are kVA and kW, and Why Are Industrial Voltage Regulators Rated in kVA?

kW (kilowatt, active power / real power): Refers to the power that actually performs work in a circuit; it is the effective electrical energy that drives a motor to rotate, heats an oven, powers a CNC system, and illuminates a light. The power used for billing on our daily electricity meters and the rated power listed on motor nameplates are both expressed in kW (active power). Simply put, kW represents the electrical energy that is actually converted into work.

kVA (kilovolt-ampere, apparent power): The total power obtained by multiplying voltage by current. It consists of two parts: active power (kW), which is used to perform work, and reactive power, which is used to establish magnetic and electric fields but does not output net work to the outside. Reactive power does not directly produce output, but as it flows back and forth continuously in the circuit, it generates loop currents that must be carried by wires, transformers, and semiconductor devices.

The conversion between the two is determined by the power factor (PF):

kW = kVA × PF kVA = kW ÷ PF

The power factor ranges from 0 to 1. For purely resistive loads, such as resistance heating furnaces and incandescent lamps, the power factor is close to 1; in this case, the kW value is almost equal to the kVA value. However, for the vast majority of inductive loads found in industrial settings—including motors, air compressors, transformers, and CNC spindles—the power factor typically falls within the range of 0.7 to 0.9. Under operating conditions where the power factor is less than 1, the apparent power (kVA) will be significantly greater than the active power (kW).

Why Are Industrial Voltage Regulators Rated in kVA?

The amount of heat generated by the transformer windings, semiconductor IGBT modules, copper busbars, and contacts inside a voltage regulator is determined by the magnitude of the circuit current, not by how much useful work the device performs. The higher the current, the greater the I²R heat loss. Once this exceeds the design limit, overheating protection will be triggered, causing the circuit to trip, and insulation will age and burn out.

Apparent power (kVA) = voltage × current. This metric directly reflects the maximum current a voltage stabilizer can withstand. If a stabilizer’s capacity were rated solely in kW, the actual circuit current would be severely underestimated when the load power factor is below 1, directly leading to the selection of an undersized stabilizer.

Typical Power‑Factor Values for Common Industrial Loads

One key property of motor power factor: PF rises as motors approach full load. Over‑sized motors running continuously under light load will reduce the overall plant power factor, increase reactive current and impose extra burden on stabilizers.

Practical Impacts of Power Factor on Stabilizers

Stabilizers, transformers, generators, cables and switchgears are thermally limited by current. For a 100 kW real‑power load:

• PF=1.0: 100 kW corresponds to 100 kVA
• PF=0.8: 100 kW corresponds to 125 kVA
• PF=0.7: 100 kW corresponds to approx. 143 kVA

Selecting stabilizers purely based on kW while ignoring power factor will result in insufficient rated capacity, excessive operating current, overheating and frequent protective tripping. That is why industrial stabilizer sizing must take kVA as the benchmark combined with site‑specific power‑factor data.

Practical Workflow for Converting Load kW to Stabilizer kVA

Follow three steps to convert equipment nameplate kW to required stabilizer kVA:

1. Adopt the actual operating power factor of loads; use 0.8 as default for mixed industrial loads without measured data.
2. Apply formula: kVA = kW ÷ PF.
3. Reserve allowance for motor inrush current and future capacity expansion.

kVA vs kW: Seven Common Costly Mistakes in Stabilizer Sizing

During industrial stabilizer procurement, confusion between kVA and kW leads to improper sizing. Stabilizers may operate under persistent abnormal conditions with frequent tripping and overheating; alternatively, over‑conservative selection causes unnecessary procurement cost waste. Below are seven most frequent and high‑cost sizing mistakes in the industry.

Mistake 1: Equate kVA with kW and completely ignore power factor

This ranks No.1 among industrial‑selection errors. Many purchasers simply assume that a 50 kW load requires a 50 kVA stabilizer. Nevertheless, most industrial motor‑type inductive loads have PF between 0.7‑0.9, so the required apparent power (kVA) is always higher than the nameplate active power (kW).

For example: a 40 kW motor load at PF=0.8 demands 50 kVA for steady‑state operation, excluding motor starting inrush. If a 40 kVA stabilizer is chosen, overload protection will trigger upon motor startup.

Such faults are concealed. They may not emerge during commissioning and often occur when multiple devices run simultaneously or grid voltage fluctuates, easily misjudged as product‑quality defects.

Key Takeaway: Never treat kW equal to kVA. For mixed industrial loads without on‑site measurement, adopt PF=0.8 and calculate with kVA=kW÷PF, then add safety allowance.

Mistake 2: Sizing only for steady‑state power and neglecting motor starting inrush

Many electrical engineers only sum nameplate kW and calculate steady‑state operating power, ignoring transient inrush current upon motor startup. When air compressors, water pumps, CNC spindles or refrigeration units start, inrush current reaches 3‑7 times rated operating current and lasts hundreds of milliseconds to several seconds. Stabilizers must withstand these short‑time current peaks without tripping.

If sizing relies merely on steady‑state figures, stabilizers tend to trip over‑current whenever large motors start or multiple devices boot together. Factories are forced to stagger production sequences, lowering overall line efficiency.

Key Takeaway: Calculate separate inrush coefficients for motor loads. 3‑5 times for DOL Direct‑On‑Line starting; 2‑3 times for star‑delta starting; 1.25‑2 times for soft‑starter / VFD drives.

Mistake 3: No safety margin or expansion allowance

Calculating kVA capacity to exactly match current loads leaves no buffer against multiple‑motor simultaneous startup, future production‑line additions, device derating under high ambient temperature, and slight load rise caused by equipment aging.

Industry standard: reserve 20‑30 percent safety margin; increase margin for motor‑intensive workshops. Always round up to the next standard rating instead of rounding down.

Key Takeaway: Safety margin is not cost waste but guarantee for continuous production. Price gaps between adjacent capacity grades are limited, while losses caused by one production shutdown far exceed stabilizer price differences.

Mistake 4: Sum total nameplate power instead of actual simultaneous operating load

Simply adding all equipment nameplate power and assuming all devices run at 100 percent full load simultaneously results in over‑sized stabilizers and capital waste. Real‑world workshops have diversity factors; almost never do all machines operate at full load at the same time.

Conversely, relying solely on average power readings and ignoring short‑term peak current will underestimate impact loads and lead to insufficient stabilizer capacity.

Key Takeaway: Conduct on‑site load survey to collect real peak operating data. Avoid blind summation of nameplate values or dependence only on average‑power statistics.

Mistake 5: Neglect phase configuration and rated‑voltage matching

Single‑phase and three‑phase power formulas cannot be interchanged. Confirm whether the on‑site system is three‑wire three‑phase or four‑wire three‑phase with neutral conductor, and verify rated voltage such as 230 V single‑phase or 400/415 V three‑phase.

Many projects only refer to nominal grid voltage without measuring real‑site voltage fluctuation. Deep undervoltage or overvoltage may exceed the stabilizer’s input correction window and disable voltage‑stabilizing performance.

Key Takeaway: Record extreme on‑site voltage values before purchase and confirm that the stabilizer’s input working range covers actual grid‑voltage fluctuations.

Mistake 6: Select near‑matching models merely based on price

To cut budgets, purchasers choose lower‑grade stabilizers with seemingly close‑looking parameters. Savings in upfront procurement cost are trivial compared with comprehensive losses from frequent shutdowns, equipment repair and scrapped workpieces.

Some low‑cost products mark peak intermittent kVA instead of continuous rated capacity. They will easily overheat under long‑term full‑load operation.

Key Takeaway: Confirm required kVA and specifications through technical calculation first, then compare prices. Evaluate total‑life‑cycle cost instead of only focusing on initial purchase price.

Mistake 7: Apply residential stabilizer‑selection logic to industrial inductive loads

Household or small‑office stabilizer selection is relatively simple for mostly resistive loads without complex power‑factor conversion. However, factory environments are dominated by inductive motor loads which require PF conversion, inrush‑checking and three‑phase‑balance verification.

Blindly copying residential experience will underestimate load demand and overlook industrial risks such as three‑phase unbalance and voltage surges, frequently causing overload failures.

Key Takeaway: Industrial stabilizer sizing must follow standardized calculation procedures rather than empirical estimation from residential scenarios.

How Different Industrial Load Types Affect Stabilizer kVA Sizing

Two major factors influence stabilizer sizing for different loads: power‑factor determines the kW‑to‑kVA conversion factor, and starting inrush defines short‑time current peaks the stabilizer must sustain. Stabilizer rated kVA handles total apparent power and surge current, and sizing strategies vary significantly across load categories.

1. Resistive loads: heating furnaces, ovens, incandescent lamps

Resistive loads feature PF close to 1.0 with minimal starting inrush, except brief minor current spikes from cold‑filament startup. Calculation is straightforward, as kVA value is roughly equal to kW. Reserve a 20‑25 percent margin on calculated results. This load type delivers the most predictable performance with minimal risks in industrial applications.

2. Induction motors, air compressors, water pumps, fans (most common factory loads)

At full load, PF ranges 0.7‑0.9 with 0.8 as engineering default. PF may drop to 0.2‑0.6 under light‑motor‑load conditions. Starting inrush reaches 3‑7 times rated current, up to 8 times in extreme cases, which is the main cause of undersized stabilizers and frequent tripping. Calculate steady‑state capacity via kVA = kW ÷ PF. Apply inrush multipliers according to startup mode: 3‑5 times for DOL startup, 2‑3 times for star‑delta startup, 1.25‑2 times for soft‑starter / VFD. Add an overall 20‑30 percent safety margin.

3. CNC machine tools, spindles and servo‑driven equipment

PF normally falls between 0.78‑0.85 and improves with modern servo correction hardware. Spindle acceleration and tool change generate short‑time peak current of 2‑4 times normal levels. Adopt motor‑type calculation logic for kW‑kVA conversion. Apply an extra 1.5‑2.5 times multiplier for spindle loads or a 25‑50 percent overall margin. Besides capacity, precision CNC equipment demands strict voltage‑regulation accuracy; stabilizers with plus or minus 1 percent or better precision are preferred.

4. Elevators, cranes, hydraulic presses, cyclical impact loads

These are lagging inductive loads with typical PF=0.8. Large inrush occurs during acceleration and direction reversal, presenting cyclically fluctuating load characteristics. Sizing shall be based on peak startup current of the largest single motor plus simultaneous auxiliary‑equipment power, then add safety margin. Apart from capacity check, stabilizer response speed and thermal endurance also deserve high priority.

5. Welding equipment, arc furnaces

Welding loads have low and variable PF 0.3‑0.7 with extremely high intermittent peak surges that easily cause instantaneous grid‑voltage dips. Calculated steady‑state apparent‑power values generally need to be doubled for sizing. Insufficient stabilizer capacity will trigger unstable voltage during welding and compromise weld quality, resulting in rejected products.

6. Industrial controls and electronics, lighting, computers, medical‑imaging equipment

PFC‑equipped electronic devices achieve PF 0.90‑0.99; older power supplies deliver lower PF. Short‑duration capacitor‑charging inrush upon power‑on can hit 2‑4 times normal current. Add a 20‑30 percent margin after kVA conversion. For precision electronic loads, static IGBT stabilizers with fast response are preferred to suppress voltage disturbances instead of simply enlarging stabilizer kVA rating.

7. Mixed‑load workshops (scenario for most real‑world factories)

Workshops combining motors, compressors, CNC equipment and lighting controls represent typical mixed loads and cannot be estimated with a single coefficient. Separate loads into inductive‑motor group and resistive‑electronic group for individual kVA conversion. Apply inrush multipliers only to impulse loads such as motors and compressors. Sum all sub‑item capacities, add a 20‑30 percent overall margin and round up to standard stabilizer rated kVA.

Case Study: High Costs Caused by Improper Stabilizer Sizing

Project Background

A medium‑sized CNC machining workshop purchased a 60 kVA three‑phase servo stabilizer to protect its whole production line. Connected equipment list at procurement stage:

• Two CNC machine tools: total 28 kW
• One air compressor: 12 kW
• Hydraulic power unit and auxiliary devices: 8 kW
• Lighting and control systems: 4 kW

Total nameplate load reached approx. 52 kW. The purchaser simply assumed kW equals kVA and selected a 60 kVA servo stabilizer with minor contingency. No power‑factor calculation or motor‑inrush assessment was carried out.

Fault Phenomenon & Root‑Cause Analysis

Several months after commissioning, the stabilizer frequently triggered overload trips, especially during morning shift startup when the air compressor and CNC spindles energized simultaneously.

1. The actual operating power factor of mixed inductive loads stood at 0.78‑0.82 instead of unity. 52 kW ÷0.8 =65 kVA, already exceeding the 60 kVA steady‑state rating.
2. DOL startup of the air compressor plus spindle acceleration produced short‑time peak current 2.5‑4 times steady‑state value. Instantaneous apparent‑power demand hit 90‑110 kVA and activated overload protection.

Within 14 months, severe losses accumulated: multiple production shutdowns (estimated 40‑60 machining‑hour loss); two CNC‑controller faults induced by voltage dips during stabilizer protection cycles; accelerated aging of servo assemblies and contactors under repeated thermal cycling. The workshop had to temporarily remove stabilizer protection and run machines exposed to raw grid fluctuations. Total losses from downtime, scrapped parts and emergency repairs were several times higher than the stabilizer purchase price.

Remedial Solution

A professional load survey was performed: measuring simultaneous operating loads, power‑factor data and recording large‑motor startup‑current profiles.

1. Steady‑state apparent‑power demand: 52 kW ÷0.8 =65 kVA
2. Calculate short‑term surge capacity caused by air‑compressor and other motor startups
3. Add 25‑30 percent safety margin for future expansion

Final requirement: 100 kVA three‑phase servo stabilizer.

After installation and commissioning of the 100 kVA unit, tripping disappeared completely. Output voltage maintained plus or minus 1 percent accuracy even under simultaneous motor startups and production resumed reliably. The original 60 kVA stabilizer was redeployed to a lighter auxiliary circuit.

Beyond kVA: Decode Other Critical Nameplate Ratings of Stabilizers

Many purchasers only focus on kVA capacity while ignoring other vital nameplate parameters. Even with sufficient kVA rating, mismatched working conditions will prevent stabilizers from meeting production requirements. Apart from apparent‑power rating, the following parameters shall be checked item‑by‑item.

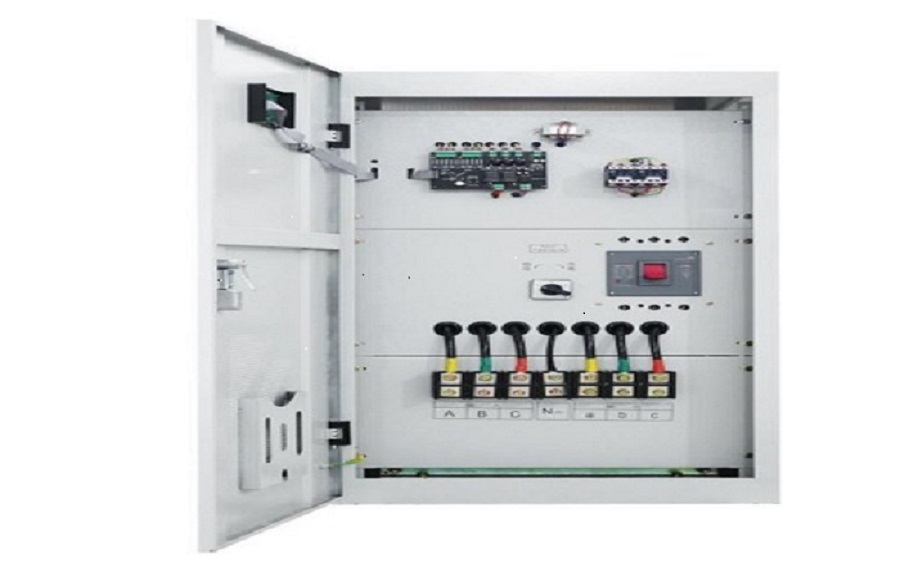

1. Phase configuration, rated voltage and input‑voltage working range Confirm single‑phase / three‑phase structure 3‑wire or 4‑wire with neutral. Match output rated voltage to site conditions 400 V / 415 V / 480 V three‑phase. Most importantly, the stabilizer’s input correction window must cover measured maximum and minimum site‑voltage values instead of merely nominal grid‑voltage values. Many factories suffer large grid‑voltage swings that may fall outside stabilizer input limits and disable stabilization.
2. Output‑voltage accuracy and response speed Servo‑type and static‑IGBT stabilizers feature distinct response characteristics. CNC, precision inspection and medical equipment usually demand plus or minus 1 percent or better precision; plus or minus 2‑3 percent is acceptable for general fans and pumps. Static‑IGBT stabilizers deliver faster response and suit high‑precision loads subject to frequent voltage disturbances.
3. Continuous rated capacity vs short‑term peak capacity During inquiry, confirm that quoted kVA represents continuous long‑term rating rather than intermittent peak capacity. Some manufacturers label peak capacity, which will overheat under continuous full‑load operation. Always base sizing on continuous rated kVA.
4. Complete protection functions Overload, over‑voltage, under‑voltage, short‑circuit, phase‑loss / phase‑sequence protection; surge protection; maintenance bypass switch. Bypass function is critical for maintenance without cutting off production‑line power supply. Digital display shall monitor input / output voltage, current and alarm status.
5. Cooling method, IP protection rating and ambient‑temperature derating Air cooling is common for stabilizers ≤100 kVA; oil cooling applies for larger continuous‑duty industrial units. Select IP rating according to on‑site dust, humidity and outdoor exposure. Rated capacity needs derating under high‑ambient‑temperature conditions.
6. Winding material, installation and maintenance considerations Copper windings generate less heat, offer longer service life and lower long‑term loss compared with aluminium windings. Verify installation space, heat‑dissipation clearance and cable‑entry dimensions. Carbon brushes of servo stabilizers are wearing parts; confirm spare‑part availability.

Conclusion

To summarize: kW stands for real useful work delivered by equipment; kVA represents total apparent power the stabilizer must sustain, determining its thermal and current‑bearing limits. Never equate equipment nameplate kW directly with stabilizer kVA in industrial sizing.

Complete sizing workflow: collect equipment kW, classify load types, determine power‑factor for kVA conversion, calculate motor‑starting inrush, add safety and expansion margin, round up to standard rating. Meanwhile verify input‑voltage window, regulation accuracy, protection and enclosure specifications.

Numerous stabilizer failures in factories stem not from product quality defects but improper preliminary capacity estimation. Correct understanding of kVA‑kW differences together with load surveys and rational capacity calculation avoids costly shutdown losses, extends stabilizer service life and reliably protects core assets including CNC machines, air compressors and production lines.

If your factory is planning grid‑voltage‑stabilization renovation or stabilizer procurement for new production lines, we can provide professional load assessment and industrial‑stabilizer capacity‑calculation services.
