In industrial power distribution, commercial complexes, data centers, and new energy grid-connected scenarios, 1000kVA transformers are the most widely used medium-capacity distribution transformers.It is between a small civil transformer and a large industrial main transformer. It can not only meet the continuous electricity demand of medium and large-scale places, but also has the advantages of high adaptability, high cost performance and long service life.
This article will comprehensively explain the definition, core characteristics, classification differences, application scenarios, selection methods, current load calculations, common faults and price influencing factors of 1000kVA transformers, and provide professional reference for engineering procurement, electrical design, and equipment operation and maintenance.
What Is a 1000 kVA Transformer
A 1000kVA transformer is a power transformation equipment with a rated apparent power of 1000 kilovolt amperes (1MVA). It relies on the principle of Faraday electromagnetic induction to realize the transmission of electrical energy between different circuits. Its core role is to raise and lower voltage and electrical isolation. It is the core basic equipment of the power transmission and distribution system.
The core meaning of kVA
The rated parameters of the transformer use apparent power (kVA) instead of active power (kW). The core reason is that the carrying limit of the transformer is determined by the winding current heating and core loss, which has nothing to do with the load power factor, and is suitable for various electric field scenarios.
Power factor 1.0 (pure resistive load): the maximum power can reach 1000kW
Industrial conventional power factor 0.8: the actual available active power is about 800kW
Core current parameters
The full load current varies with the rated voltage, and the standard current parameters commonly used in the industry are as follows：
- 400V on the low voltage side: about 1443A
- 480V on the low voltage side: about 1203A
- 11kV on the high voltage side: about 52.5A
Mainstream equipment type
The 1000kVA transformers on the market are mainly divided into three categories, which are suitable for different installation environments：
- Oil-immersed transformers: rely on insulating oil to achieve cooling and insulation, and the mainstream adopts ONAN natural oil circulation air cooling mode.The equipment has high durability, good overload performance, outstanding cost advantages, and is widely used in outdoor power distribution scenes.
- Dry transformer: it is divided into two structures: epoxy resin pouring and VPI vacuum impregnation, which rely on air for heat dissipation and solid material for insulation.It has excellent fire resistance and is basically maintenance-free in daily life, making it more suitable for indoor and sensitive places with high fire safety requirements.
- Box-type floor-standing transformer: the overall integrated closed box structure, most of the interior is equipped with oil-immersed transformers.The layout is compact and highly integrated, and it is often used in outdoor power distribution points such as commercial areas and industrial parks.
General standard parameters
The equipment parameters comply with IEC 60076, ANSI/IEEE and other international standards, and industry general specifications：
- High voltage voltage: 6kV~33kV (11kV, 13.8kV, and 22kV are the main currents)
- Low voltage voltage: 400V, 415V, 480V, 600V (three-phase)
- Working frequency: 50Hz/60Hz
- Wiring group: Dyn11 (mainstream, excellent harmonic suppression and grounding performance)
- Impedance voltage: 4%~6%, taking into account the current limiting and voltage regulating effects
- Operating efficiency: ≥98.5%
Key Features of 1000 kVA Transformers
With its balanced capacity, performance and cost, 1000kVA transformers have become the preferred equipment for medium and large power distribution scenarios. The core characteristics are concentrated in the three dimensions of electrical performance, structural design, safety and durability.
Core electrical performance
The rated capacity is stable at 1000kVA, and the voltage, frequency, and impedance parameters are adapted to the world’s mainstream power distribution systems. The Dyn11 wiring group can effectively suppress harmonics, stabilize the three-phase voltage, and adapt to non-linear loads such as motors, frequency conversion equipment, and servers.The full-load current parameters are accurate and the voltage regulation performance is excellent. ±2×2.5% voltage regulation can be achieved through the external switch, which is suitable for power grid voltage fluctuation scenarios.
High efficiency and low loss

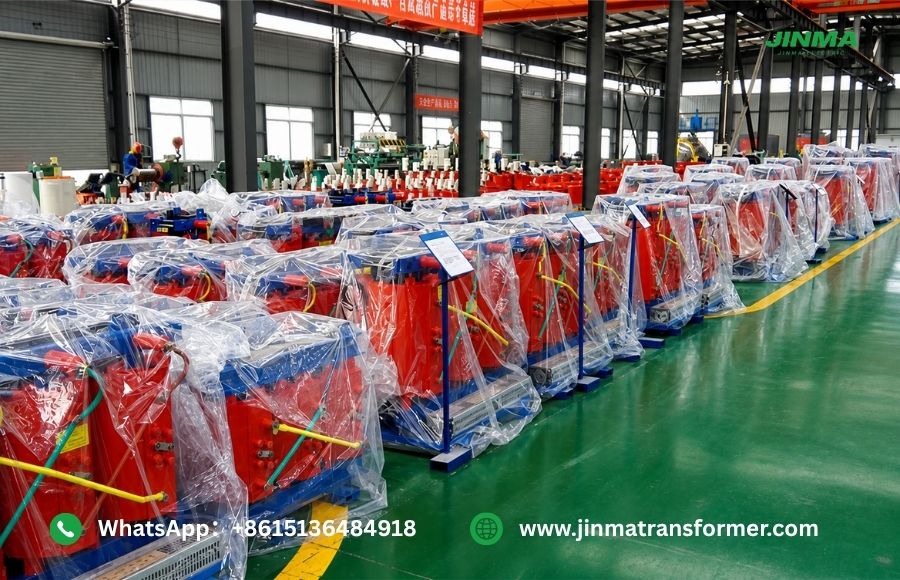

The transformer adopts a high-permeability cold-rolled oriented silicon steel sheet (CRGO) iron core, which effectively suppresses the core hysteresis and eddy current loss, and significantly reduces no-load energy consumption.The comprehensive operating efficiency of the equipment can reach 98.6%~99.1%, and the energy efficiency performance is excellent.
Under the rated standard operating conditions, the no-load loss is stably controlled at 1.1~1.7kW, and the load loss is maintained in the range of 9~11kW. The overall loss coefficient is low, and the energy-saving effect of long-term operation is outstanding.
Excellent thermal stability
The rated temperature rise of the oil-immersed transformer is strictly controlled within 65℃, with excellent thermal stability and sufficient redundancy for safe operation; the dry-type transformer is equipped with an F/H-grade high-end insulator system, which has greatly improved high temperature resistance and thermal aging resistance, and can calmly cope with short-term overload conditions caused by load fluctuations, and the equipment has better resistance.
Structure and thermal design
The iron core adopts a laminated structure to reduce noise and reduce damage; the windings are divided into two types: copper core and aluminum core, and the copper core winding loss is lower and the mechanical strength is higher.Targeted design of the cooling system: the oil-immersed type adopts the combination of ONAN/ONAF oil-cooled and air-cooled, which has high heat dissipation efficiency and strong overload capacity; the dry-type transformer adopts AN natural air-cooled/AF forced air-cooled, no liquid medium, and simple structure.The oil-immersed type can be used as a fully sealed structure, which greatly reduces the frequency of maintenance.
Safety protection and long life
The oil-immersed type is equipped with an oil storage cabinet, a radiator, a gas relay, a pressure release device, and an oil temperature and oil level monitoring module, which can monitor equipment failures in real time; the dry-type transformer adopts flame-retardant self-extinguishing resin, which has no fire hazards, moisture-proof and dust-proof.The equipment has short-circuit tolerance and lightning protection capabilities, the protection level can reach IP54, and the service life can reach 20 to 30 years under normal operation and maintenance.
Advantages of type differentiation
- Oil-immersed transformer: adopts ONAN natural oil-cooled and air-cooled method, and uses insulating oil to complete heat dissipation and insulation. It has good overall durability, excellent overload performance, outstanding cost performance, and strong outdoor weather resistance. It is widely used in all kinds of outdoor power distribution scenes.
- Dry transformer: it adopts epoxy resin pouring or VPI vacuum impregnation structure, relies on air cooling and solid insulation, and has the characteristics of fire and explosion-proof, oil-free, and low noise. It does not require daily maintenance and has high safety and reliability. It is mainly suitable for indoor and fire safety sensitive scenes.
- Box-type floor-standing transformer: adopts an integrated fully enclosed integrated structure, the main body is mostly oil-immersed configuration, compact structure, small footprint, easy installation, suitable for commercial, industrial and other outdoor standardized power distribution scenarios.
1000 kVA Transformer Applications
The 1000kVA transformer is suitable for medium-scale, stable and continuous electric field scenarios, and can realize medium-voltage (11kV/33kV) to low-voltage (400~480V) power distribution, covering all fields such as industry, commerce, people’s livelihood, new energy, and infrastructure.
Industrial factory scene
It is widely used in automobile manufacturing, iron and steel, chemical industry, mining, machining, and port factories. It provides stable power supply for high-power equipment such as CNC machine tools, stamping equipment, welding equipment, air compressors, automated production lines, and heavy-duty motors. It can withstand industrial load fluctuations and short-term overload, and is suitable for continuous industrial production needs.
Large commercial buildings
It distributes electricity to shopping centers, office buildings, hotels, universities, large supermarkets and other complexes, covering the global electricity consumption of elevators, central air conditioners, lighting, escalators, office equipment, etc., to ensure the stable daily operation of buildings, and more dry transformers are used to avoid indoor safety hazards.
Public medical and livelihood facilities
Hospitals, schools, government venues and other scenarios with extremely high requirements for power supply safety and stability, priority is given to the use of dry-type 1000kVA transformers, which have no fire risk, low noise, and maintenance-free, and can ensure the continuous power supply of medical equipment, teaching equipment, and emergency systems to prevent power outages.
Data center and computing power room
It is suitable for small and medium-sized data centers, IDC computer rooms, and AI computing power centers to provide stable power for server cabinets, UPS systems, computer room cooling equipment, and redundant power supply systems. It can be adapted to high-frequency harmonic loads and is designed with K-level tolerance to avoid equipment losses caused by nonlinear loads.
New energy grid-connected project
It is used in distributed photovoltaic power plants, small wind farms, and energy storage power plants to realize the docking of voltage rise and fall on the power generation side with the power grid, balance the volatility of new energy power generation, and complete the integration and grid-connected transmission of electrical energy. It is the core equipment of new energy terminal power distribution.
Municipal infrastructure and special scenarios
It covers scenarios such as airports, rail transit, tunnel projects, large-scale charging pile stations, automated warehousing, municipal substations, etc., taking into account temporary construction power supply and long-term power distribution needs, and adapting to outdoor complex environments and high-density electric power scenarios.

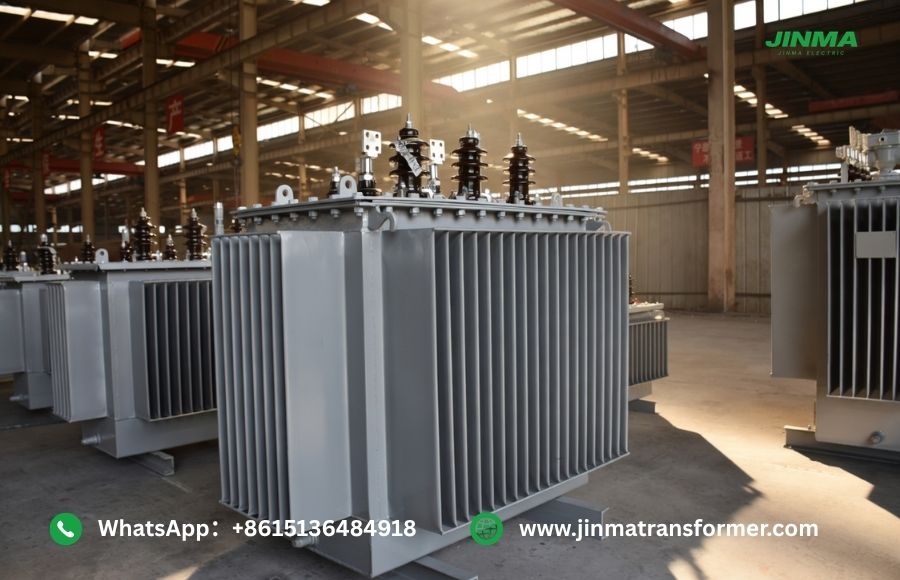

Oil-Immersed vs. Dry-Type 1000 kVA Transformers
The core power supply capabilities of oil-immersed and dry-type transformers of the same capacity are the same, but there are significant differences in heat dissipation, safety, cost, maintenance, and adaptation scenarios, which are the core distinguishing basis for engineering selection.
| Contrast dimension | Oil-immersed 1000kVA transformer | Dry type 1000kVA transformer |
| Cooling medium | Mineral oil/ester insulating oil (ONAN/ONAF) | Natural air/forced air cooling (AN/AF) |
| Insulation method | Oil + paper insulation | Epoxy resin pouring/VPI vacuum impregnation |
| Fire safety | Generally, oil products are combustible and need fire protection | Excellent, flame-retardant, self-extinguishing, no flammable media |
| Installation scenario | Priority is given to outdoor, indoor special fireproof compartments are required | Indoor, confined spaces, densely populated places |
| Overload capacity | Strong, short-term overload can reach 150% | Medium, short-term overload 110%~120% |
| Maintenance difficulty | Regular oil inspection, oil filtration, and liquid level inspection are required | Extremely low, only cleaning and appearance inspection are required |
| Environmental risk | There is a risk of oil leakage and pollution | Zero pollution, environmentally friendly and harmless |
| Initial cost | Low, cost-effective | High, 20%~50% more expensive than oil-immersed |
| Service life | 25~30 years | 20~30 years |
Selection and adaptation recommendations
Priority is given to oil-immersed types: outdoor substations, industrial plants, heavy-duty scenarios in mines, projects with limited budgets and long-term high-load operation, and overload capacity and service life are valued.
Priority is given to dry type: indoor computer rooms, hospitals, shopping malls, data centers, high-rise buildings, scenarios with strict environmental protection and fire protection requirements, and safety and maintenance-free characteristics are valued.
How to Select the Right 1000 kVA Transformer
Reasonable selection can avoid problems such as equipment overload and burning, excessive no-load loss, and poor adaptability, and ensure the stable operation of the equipment for 20 to 30 years. The core follows seven steps：
Accurate accounting of load capacity
Summarize the total power (kW) of all electrical equipment on the site, combine the power factor (industrial and commercial 0.6~0.8) and the power factor (industrial 0.8) to convert the required kVA capacity, and reserve 15%~25% expansion margin. It is recommended that the daily load rate be controlled at 60%~80%, taking into account efficiency and equipment life.
Calculation formula: Required kVA= (total kW × simultaneous coefficient)÷power factor
Matching electrical parameters
Strictly match the voltage on the high-voltage side of the power grid, the output voltage on the low-voltage side of the equipment, and the frequency of the power grid. Dyn11 wiring group and 4%~6% standard impedance are preferred, and no-load/on-load tap switches are selected according to the voltage fluctuation requirements.
Select equipment type by environment
Oil-immersed transformers are preferred for conventional industrial power distribution scenarios such as outdoor factories and suburban substations; dry transformers are adapted for indoor computer rooms, densely populated places, and scenes with strict fire control; floor-standing box transformers can be selected for working conditions where site space is limited and integrated power distribution solutions are required.
Assess the environmental conditions of the site
For harsh working conditions such as high temperature, high altitude, dust, and strong corrosion, the equipment needs to be reduced in capacity or equipped with dust-proof and anti-corrosion reinforced structures to ensure stable operation; when the site contains frequency converters, servers and other nonlinear loads, it is recommended to configure K-class anti-harmonic transformers to effectively suppress harmonic interference and reduce equipment heat generation and loss.
Energy efficiency and full cycle cost
Give priority to energy-efficient equipment with efficiency ≥98.5%, comparing no-load and load losses; copper-core windings are more efficient and have a longer life span, and aluminum-core windings are more cost-effective; combine procurement, installation, operation and maintenance, and energy consumption costs to calculate the whole life cycle value, rather than just looking at the price.
Verification standards and protection configuration
Equipment must strictly follow authoritative industry specifications such as IEC, ANSI and domestic national standards, and select safety protection modules such as temperature monitoring, gas protection, pressure release, and remote intelligent monitoring as needed in combination with on-site working conditions, and match the adapted IP protection level to ensure equipment operation compliance and working condition safety in all directions.
Manufacturer and after-sales selection
Priority is given to selecting regular manufacturers with complete qualifications, authoritative type test reports, and localized after-sales systems, and strictly checking equipment technical parameters, warranty periods, and delivery timeliness to ensure that equipment installation and commissioning, acceptance and delivery, and long-term operation and maintenance are reliable and controllable throughout the process.
1000 kVA Transformer Current and Load Calculation
Current and load calculations are the core basis for power distribution design, cable selection, and switch configuration. All calculations are adapted to three-phase industry standards.
Three-phase full load current calculation formula
I= (rated kVA×1000)÷(√3×line voltage V)=1000000÷(1.732×V)
Full voltage level, full load current comparison table
Low voltage side: 400V (1443A), 415V (1391A), 480V (1203A), 600V (962A)
High voltage side: 11kV (52.5A), 13.8kV (41.8A), 22kV (26.2A), 33kV (17.5A)
Active power load conversion
Active power kW= rated kVA×power factor
PF=1.0：1000kW
PF=0.9：900kW
PF=0.8: 800kW (industrial general)
Industry general specifications: In order to ensure the life of the equipment, it is recommended that the long-term continuous load be controlled within 80% of the rated capacity. At 0.8 power factor, the continuous load is recommended to be ≤640kW.
Practical calculation case
Scenario: 1000kVA, 11kV/400V three-phase transformer, load power factor 0.8
The low-voltage full-load current is≈1443A, the high-voltage full-load current is≈52.5A, the maximum available active power is 800kW, and the safe continuous load is 640~720kW.

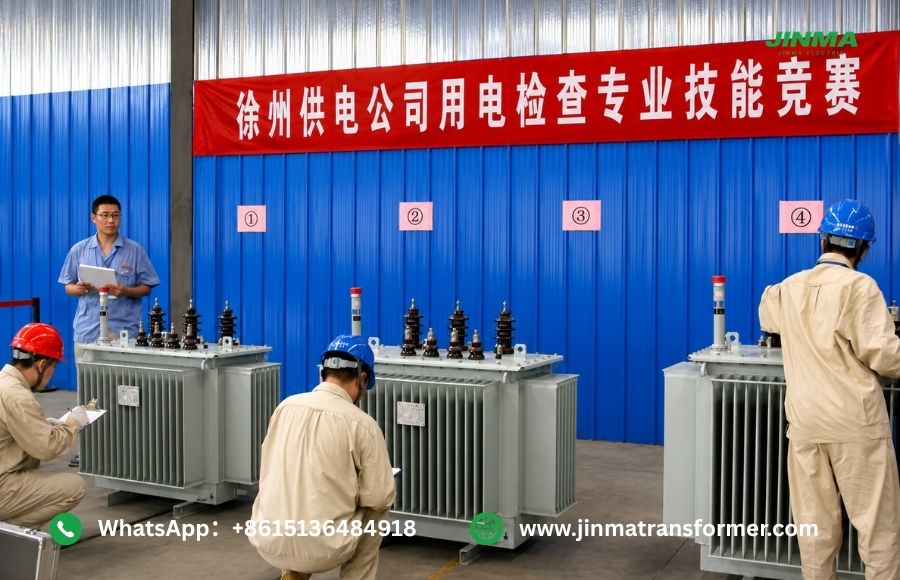

Common Problems With 1000 kVA Transformers
Equipment failures are mostly caused by overload, harsh environment, improper operation and maintenance, and aging. Targeted investigation and prevention can effectively extend the service life of equipment and reduce the risk of downtime.
Equipment overheating
Cause of failure: long-term overload operation of the equipment, blockage of ash on the cooling surface area, abnormal shutdown of the cooling fan, excessive on-site ambient temperature, and excessive harmonic load cause abnormal heating.
Failure hazards: accelerate the aging of the insulating layer of the equipment, cause the insulating oil to deteriorate and deteriorate, and long-term overheating will cause the winding to overheat and burn down, resulting in equipment shutdown and failure.
Preventive measures: strictly control the operating load rate of the equipment, regularly clean up the dust and debris accumulated in the cooling components, and monitor the operating temperature of the equipment normally; for non-linear load conditions, anti-harmonic transformers are selected to avoid hidden dangers of heat generation.
Insulation aging and moisture breakdown
Cause of failure: long-term high-temperature operation of the equipment accelerates the aging of the insulation, the aging and damage of the sealing components, moisture in the water, the deterioration of the insulation oil pollution, and the impact of the power grid voltage damages the insulation layer.
Fault hazard: The insulation resistance of the equipment drops significantly, resulting in partial discharge, which can easily cause major electrical failures such as short circuit and surface flashover.
Preventive measures: regularly check the quality of the insulating oil and the insulation resistance of the equipment, replace the aging and failed sealing accessories in time, and keep the equipment body and operating environment dry and clean.
Oil-immersed transformer oil leakage
Causes of failure: aging and failure of sealing gaskets, defects in welding parts of equipment, vibration and wear of equipment operation, and internal pressure fluctuations caused by changes in environmental temperature difference can all lead to oil seepage and oil leakage problems.
Failure hazard: The heat dissipation and insulation properties of the equipment are greatly reduced, which will not only cause on-site environmental pollution, but also greatly increase the safety risk of fire and short circuit of the equipment.
Preventive measures: Normalize the inspection of key parts of equipment sealing and welding, regularly replace aging sealing accessories, and give priority to the selection of equipment with a fully sealed structure to avoid oil spills from the source.
Winding failure
Cause of failure: sudden short-circuit current shock in the power grid, damage and failure of the insulation layer, loosening of the fixed components of the winding, frequent and large fluctuations in the load of the equipment, causing deformation of the winding and short-circuit failure.
Fault hazard: Abnormal local heating of the winding and arc discharge will occur. In severe cases, it will cause the equipment shell to burst and catch fire, causing equipment to be scrapped and power supply accidents.
Preventive measures: improve the relay protection configuration of the power grid, accurately avoid short-circuit shocks, strictly control equipment overload and frequent variable load operating conditions, and choose transformer equipment with stable winding structure and excellent quality.
Casing and terminal block failure
Cause of failure: the surface area of the casing is dirty with ash, condensation by moisture, loose installation of terminal blocks, aging and cracking during long-term operation, causing poor contact and insulation failure.
Fault hazard: Surface flashover and arc discharge occur outside the equipment, which can easily trigger equipment tripping and out of operation, and cause electrical safety accidents in severe cases.
Preventive measures: regularly clean the dirty surface of the casing, tighten the terminal blocks comprehensively, carry out electrical inspections and performance tests normally, and investigate hidden dangers in time.
Other frequently asked questions
Abnormal noise and vibration, poor contact with the tap switch, partial discharge, voltage regulation failure, etc. are mostly caused by irregular installation, aging of accessories, and improper parameter matching. Regular operation and maintenance can be effectively avoided.
Customization Options for 1000 kVA Transformers
Mainstream manufacturers support full-dimensional customization, which can be adapted to various special working conditions, power grid standards and project requirements. The core customization options are as follows：
Customization of electrical parameters
Customizable high and low voltage voltage, 50/60Hz dual frequency, wiring group, impedance value, optional ±4×2.5% wide range tap switch, support K4/K9/K13 anti-harmonic customization, special insulation level customization, suitable for new energy, computer room, industrial special loads.
Material and energy efficiency customization
It can be flexibly equipped with copper core, aluminum core winding, ordinary silicon steel sheet, and amorphous alloy iron core, supporting ultra-low loss and ultra-high energy efficiency personalized customization; oil-immersed models can be adapted to environmentally friendly ester insulating oils, low-carbon and energy-saving, and achieve green and safe operation.
Heat dissipation and environmental customization
It supports the customization of natural air cooling, forced air cooling, and forced oil cooling, and is suitable for high temperature, high altitude, low temperature and cold environments; it can be used as special structures for anti-corrosion, dust-proof, moisture-proof, and seismic resistance, and is suitable for harsh scenes such as coastal areas, mines, and tunnels.
Structure and protection customization
It supports the customization of various installation structures, including vertical, horizontal, pedestal, and mobile, covering a full range of protection levels from IP00 to IP54. The dimensions and appearance colors of the equipment can be customized on demand, and it can be flexibly adapted to various site installation conditions and space restrictions.
Intelligent monitoring and accessories customization
It can be equipped with intelligent functions such as PT100 temperature sensor, remote Internet of Things monitoring, data cloud upload, fault alarm linkage, etc., and can be equipped with lightning arrester, metering device, special casing, forced cooling fan and other supporting components to fully realize intelligent equipment monitoring, precise control and automated operation and maintenance.
Special certification customization
It can be adapted to mainstream domestic and foreign industry standards such as national standard, IEC, ANSI, UL, CSA, etc., and can be customized according to the special acceptance specifications of different industries such as new energy, medical, municipal, electric power, etc., to fully meet the compliance and acceptance needs of various projects.
Conclusion
1000kVA is a commonly used medium-capacity distribution transformer, which is suitable for factory buildings, commercial construction, new energy, infrastructure and other scenarios.The oil-immersed type is suitable for outdoor scenarios with high heat dissipation and high cost performance, and the dry-type transformer is suitable for indoor, densely populated and high fire-proof and clean demand scenarios.
The selection of the project needs to be combined with the comprehensive considerations of working conditions, environment, safety standards, energy consumption and cost, and cooperate with the standardized installation, operation and maintenance to ensure the stable operation of the equipment.Jinmatransformer can provide a full range of oil-immersed and dry-type distribution transformers, support parameter and structure customization, and adapt to the power distribution needs of various industrial, commercial and new energy projects.
